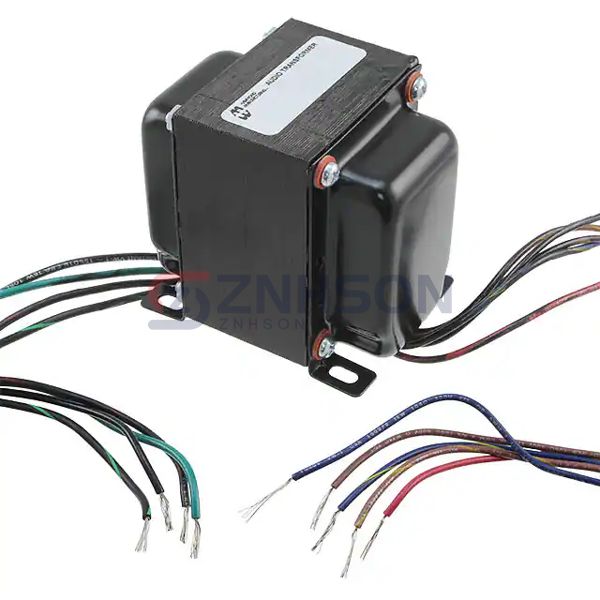

1650E
Hammond Manufacturing
Hammond Manufacturing
AUDIOPHILE TUBE OUTPUT TRANSFRMR
$136.99
Available to order
Reference Price (USD)
1+
$112.59000
10+
$108.83700
25+
$101.33120
50+
$93.82500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your audio projects with Hammond Manufacturing 1650E Audio Transformers, known for their robust construction and exceptional sound quality. These transformers are ideal for a wide range of applications, from PA systems to musical instruments, providing reliable and distortion-free performance. Count on Hammond Manufacturing for excellence in every component. Contact us now to discuss your requirements.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: -
- Impedance - Primary (Ohms): 8kCT
- Impedance - Secondary (Ohms): 4, 8, 16
- DC Resistance (DCR) - Primary: 98.98Ohm, 101.9Ohm
- DC Resistance (DCR) - Secondary: 154mOhm, 218mOhm, 303mOhm
- Transformer Type: Push-Pull Audiophile, Ultra-Linear - Tube Output
- Frequency Range: 30Hz ~ 30kHz
- Frequency Response: ±1dB
- Voltage - Isolation: 2000V @ 1 Second
- Insertion Loss: -
- Return Loss: -
- Power Level: 15W
- Operating Temperature: -
- Approval Agency: -
- Mounting Type: Chassis Mount
- Size / Dimension: 3.250" L x 2.500" W (82.55mm x 63.50mm)
- Height - Seated (Max): 3.060" (77.72mm)
- Termination Style: Wire Leads
