1645A
Hammond Manufacturing
Hammond Manufacturing

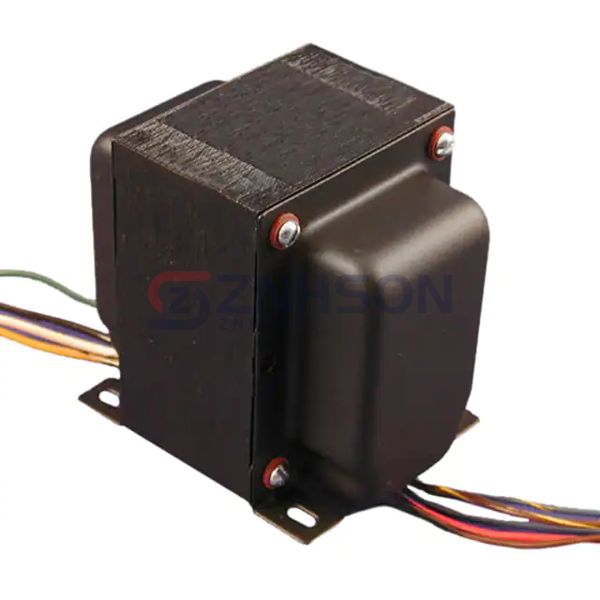

AUDIOPHILE TUBE OUTPUT TRANSFRMR
$155.36
Available to order
Reference Price (USD)
1+
$136.82000
10+
$132.25500
25+
$123.13360
50+
$114.01260
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize audio performance with Hammond Manufacturing 1645A Audio Transformers, offering industry-leading quality and efficiency. These transformers are perfect for high-end audio equipment, delivering pristine sound reproduction. Choose Hammond Manufacturing for components that set the standard. Submit your inquiry now and take your audio projects to the next level.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: -
- Impedance - Primary (Ohms): 5kCT
- Impedance - Secondary (Ohms): 4, 8, 16, 70V
- DC Resistance (DCR) - Primary: 72.11Ohm, 79.35Ohm
- DC Resistance (DCR) - Secondary: 276mOhm, 391mOhm, 464mOhm, 9.304Ohm
- Transformer Type: Push-Pull Audiophile, Ultra-Linear - Tube Output
- Frequency Range: 30Hz ~ 30kHz
- Frequency Response: ±1dB
- Voltage - Isolation: 2000V @ 1 Second
- Insertion Loss: -
- Return Loss: -
- Power Level: 30W
- Operating Temperature: -
- Approval Agency: -
- Mounting Type: Chassis Mount
- Size / Dimension: 3.750" L x 2.500" W (95.25mm x 63.50mm)
- Height - Seated (Max): 3.060" (77.72mm)
- Termination Style: Wire Leads
