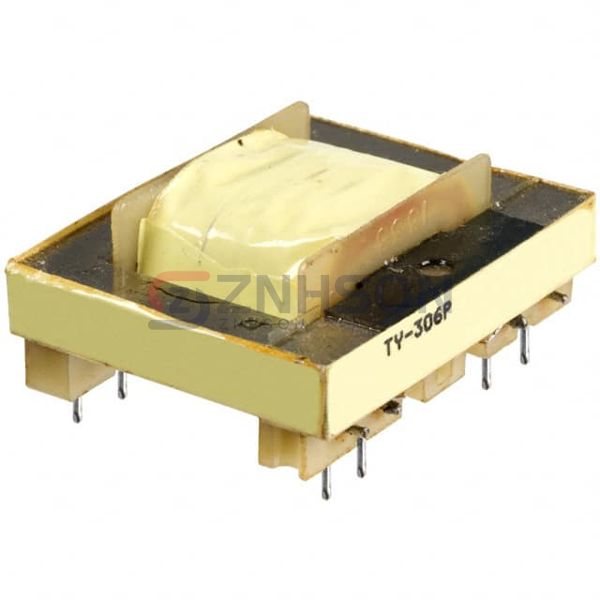

TY-306P
Triad Magnetics
Triad Magnetics
TRANSF 600 SPLIT PRI .75MA DC TE
$20.11
Available to order
Reference Price (USD)
1+
$18.80000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Transform your audio applications with Triad Magnetics TY-306P Audio Transformers, featuring cutting-edge technology and reliable performance. These transformers are essential for maintaining sound quality in various setups, from home theaters to professional studios. Trust Triad Magnetics to deliver components that make a difference. Request a quote now and enhance your audio systems.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 1:1
- Impedance - Primary (Ohms): 600, 150/150
- Impedance - Secondary (Ohms): 600
- DC Resistance (DCR) - Primary: 31Ohm, 31Ohm
- DC Resistance (DCR) - Secondary: 108Ohm
- Transformer Type: Data/Voice Coupling
- Frequency Range: 300Hz ~ 3.5kHz
- Frequency Response: ±0.5dB
- Voltage - Isolation: 1500VAC
- Insertion Loss: 1.5dB Typ
- Return Loss: 10dB Typ
- Power Level: -45dB ~ 7dB
- Operating Temperature: -20°C ~ 85°C
- Approval Agency: -
- Mounting Type: Through Hole
- Size / Dimension: 1.650" L x 1.375" W (41.91mm x 34.93mm)
- Height - Seated (Max): 0.680" (17.27mm)
- Termination Style: PC Pin
