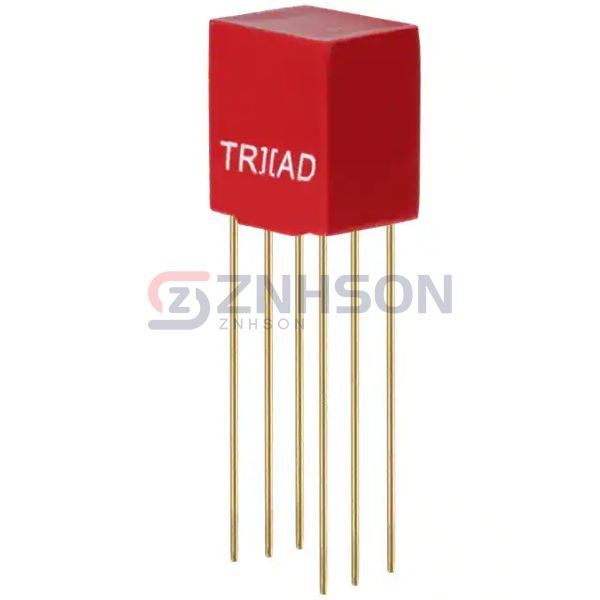

SP-67
Triad Magnetics
Triad Magnetics
TRANSER 600 CT/ 600 CT AUDIO
$19.92
Available to order
Reference Price (USD)
1+
$18.26000
10+
$13.91400
25+
$12.82680
50+
$12.39200
100+
$12.17450
250+
$11.73972
500+
$11.30494
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your audio projects with Triad Magnetics SP-67 Audio Transformers, known for their robust construction and exceptional sound quality. These transformers are ideal for a wide range of applications, from PA systems to musical instruments, providing reliable and distortion-free performance. Count on Triad Magnetics for excellence in every component. Contact us now to discuss your requirements.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 1:1
- Impedance - Primary (Ohms): 600CT
- Impedance - Secondary (Ohms): 600CT
- DC Resistance (DCR) - Primary: 72Ohm
- DC Resistance (DCR) - Secondary: 92Ohm
- Transformer Type: Audio Coupling
- Frequency Range: 300Hz ~ 100kHz
- Frequency Response: ±2dB
- Voltage - Isolation: 1000VRMS @ 1 Second
- Insertion Loss: -
- Return Loss: -
- Power Level: 50mW
- Operating Temperature: -40°C ~ 85°C
- Approval Agency: -
- Mounting Type: Through Hole
- Size / Dimension: 0.410" L x 0.310" W (10.41mm x 7.87mm)
- Height - Seated (Max): 0.465" (11.80mm)
- Termination Style: PC Pin
