1650WA
Hammond Manufacturing
Hammond Manufacturing

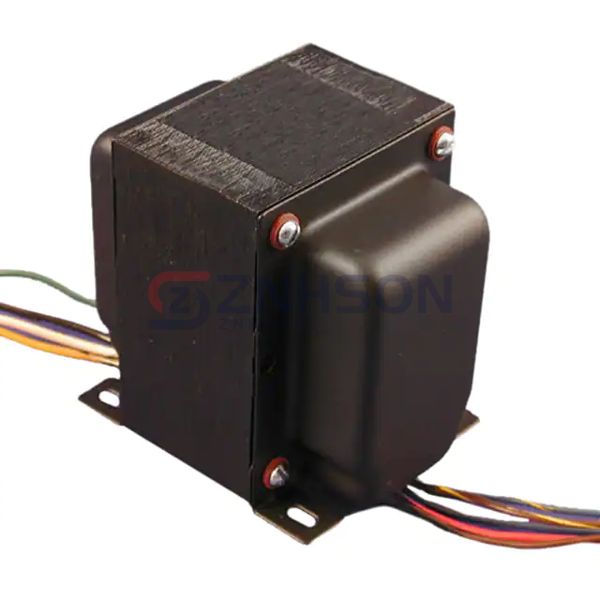

AUDIOPHILE TUBE OUTPUT TRANSFRMR
$438.33
Available to order
Reference Price (USD)
1+
$360.28000
10+
$334.54200
25+
$321.67520
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize audio performance with Hammond Manufacturing 1650WA Audio Transformers, offering industry-leading quality and efficiency. These transformers are perfect for high-end audio equipment, delivering pristine sound reproduction. Choose Hammond Manufacturing for components that set the standard. Submit your inquiry now and take your audio projects to the next level.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: -
- Impedance - Primary (Ohms): 1.9kCT
- Impedance - Secondary (Ohms): 4, 8, 16
- DC Resistance (DCR) - Primary: 15.65Ohm, 17.19Ohm
- DC Resistance (DCR) - Secondary: 152mOhm, 203mOhm, 217mOhm
- Transformer Type: Push-Pull Audiophile, Ultra-Linear - Tube Output
- Frequency Range: 30Hz ~ 30kHz
- Frequency Response: ±1dB
- Voltage - Isolation: 3535VDC @ 1 Second
- Insertion Loss: -
- Return Loss: -
- Power Level: 280W
- Operating Temperature: -
- Approval Agency: -
- Mounting Type: Chassis Mount
- Size / Dimension: 7.500" L x 4.380" W (190.50mm x 111.25mm)
- Height - Seated (Max): 5.250" (133.35mm)
- Termination Style: Wire Leads
