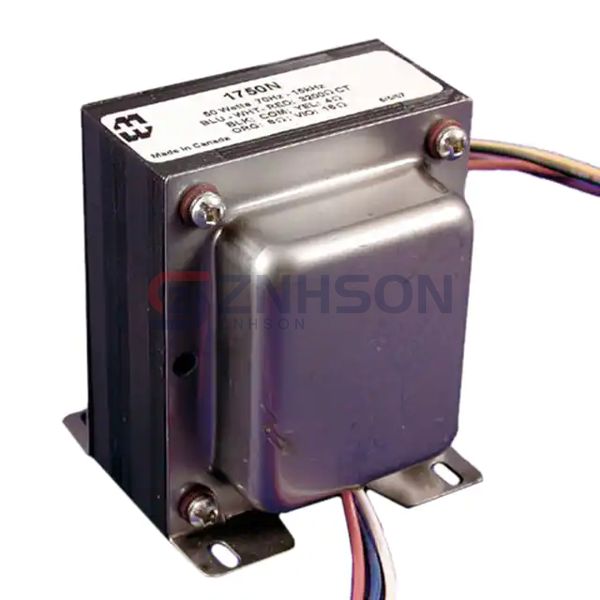

1750N
Hammond Manufacturing
Hammond Manufacturing
TRANSFORMER TUBE GUITAR AMP
$105.66
Available to order
Reference Price (USD)
1+
$86.85000
10+
$83.95500
25+
$78.16520
50+
$72.37500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your audio systems with Hammond Manufacturing 1750N Audio Transformers, engineered for superior sound quality and durability. Ideal for amplifiers, mixers, and other audio devices, these transformers ensure minimal distortion and maximum efficiency. Trust Hammond Manufacturing for top-tier components that meet your audio needs. Request a quote now and experience the difference in your sound applications.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 14.30:1
- Impedance - Primary (Ohms): 3.2kCT
- Impedance - Secondary (Ohms): 4, 8, 16
- DC Resistance (DCR) - Primary: 41.74Ohm, 3.14Ohm
- DC Resistance (DCR) - Secondary: 170mOhm, 240mOhm, 360mOhm
- Transformer Type: Push-Pull Audiophile, Ultra-Linear - Tube Output
- Frequency Range: 70Hz ~ 15kHz
- Frequency Response: ±1dB
- Voltage - Isolation: -
- Insertion Loss: -
- Return Loss: -
- Power Level: 50W
- Operating Temperature: -
- Approval Agency: -
- Mounting Type: Chassis Mount
- Size / Dimension: 3.125" L x 3.350" W (79.38mm x 85.09mm)
- Height - Seated (Max): 3.800" (96.52mm)
- Termination Style: Wire Leads
