2-1445087-5
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

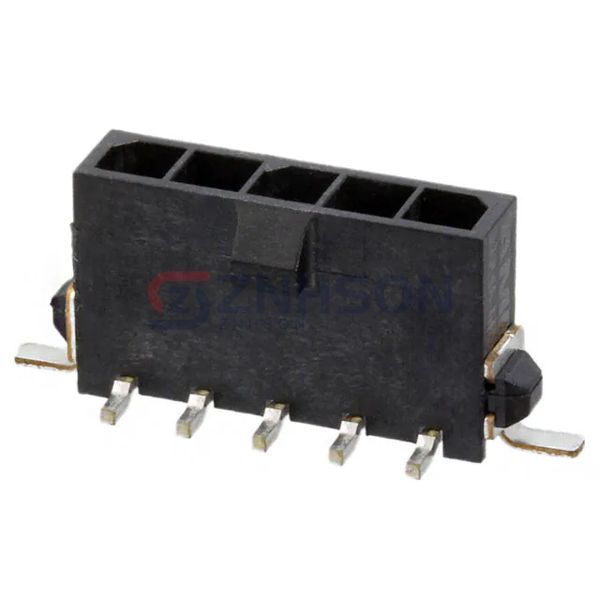

CONN HEADER SMD 5POS 3MM
$1.89
Available to order
Reference Price (USD)
210+
$1.61114
420+
$1.47107
630+
$1.36598
1,050+
$1.19087
2,100+
$1.15584
5,250+
$1.07178
10,500+
$1.05076
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 2-1445087-5 TE Connectivity AMP Connectors Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.118" (3.00mm)
- Number of Positions: 5
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.364" (9.25mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: Pick and Place, Solder Retention
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 250V
Related Products
Sullins Connector Solutions
PBC10SFCN
Samtec Inc.
MTMM-105-03-L-D-146
TE Connectivity AMP Connectors
643495-1
Samtec Inc.
TSM-105-01-S-SH-A-P
Harwin Inc.
M80-5T10205M2-02-331-00-000
Samtec Inc.

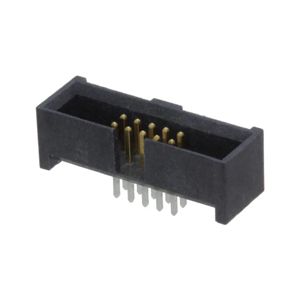

ESHF-105-01-L-D-TH
