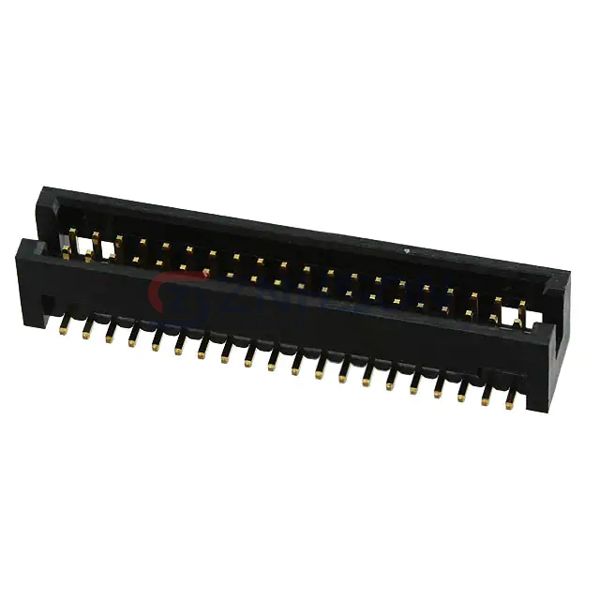

20021221-00040C4LF
Amphenol ICC (FCI)
Amphenol ICC (FCI)
CONN HEADER SMD 40POS 1.27MM
$2.92
Available to order
Reference Price (USD)
500+
$2.41376
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your project's efficiency with 20021221-00040C4LF Amphenol ICC (FCI) Rectangular Connectors - Headers, Male Pins. These connectors ensure low insertion force, high mating cycles, and EMI shielding for superior performance. Ideal for medical equipment, robotics, and telecommunications. Need a quote? Contact us today and let s discuss your requirements!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 40
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.120" (3.05mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.220" (5.60mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: Pick and Place
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A per Contact
- Voltage Rating: 125VAC
Related Products
Molex
0026489242
Samtec Inc.
FTSH-110-01-L-DH-A-TR
Samtec Inc.
FTSH-122-01-FM-DV
TE Connectivity AMP Connectors
9-146277-0-21
Samtec Inc.
TSW-138-07-T-S
Mill-Max Manufacturing Corp.
850-90-042-20-001000
Samtec Inc.

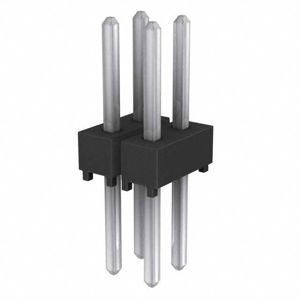

TSW-102-26-T-D
Samtec Inc.

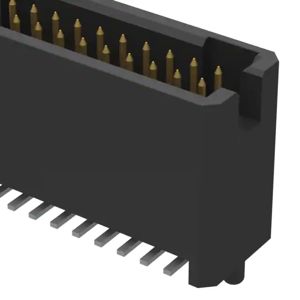

TFC-125-22-FM-D-A
JST Sales America Inc.

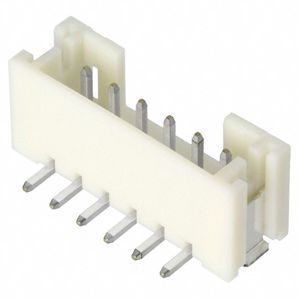

B6B-PH-SM4-TB(LF)(SN)
