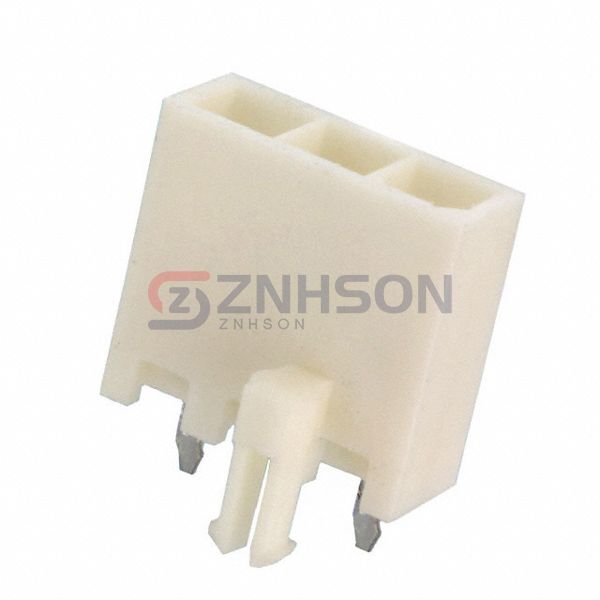

2029056-3
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 3POS 4.2MM
$0.79
Available to order
Reference Price (USD)
1+
$0.75000
10+
$0.70800
100+
$0.55320
500+
$0.48680
1,000+
$0.40935
5,000+
$0.36510
10,000+
$0.34297
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 2029056-3 TE Connectivity AMP Connectors Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.165" (4.20mm)
- Number of Positions: 3
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.138" (3.50mm)
- Overall Contact Length: -
- Insulation Height: 0.504" (12.80mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 80.0µin (2.03µm)
- Contact Finish - Post: Tin
- Contact Material: Brass Alloy
- Insulation Material: Polyamide (PA), Nylon
- Features: Board Lock
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 9A
- Voltage Rating: 600VAC
Related Products
Samtec Inc.
FTMH-108-03-F-DV-A
Amphenol ICC (FCI)
72454-010LF
HARTING
09195267904
Preci-Dip
800-10-049-10-002101
Samtec Inc.
TMM-107-02-L-S
Samtec Inc.

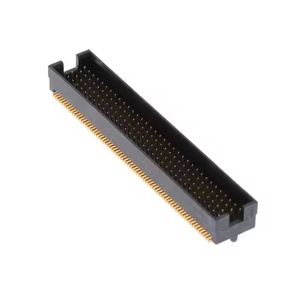

TOLC-135-02-L-Q-A-K-TR
Samtec Inc.

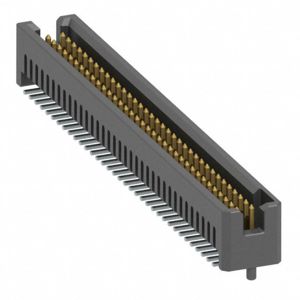

TFM-135-02-F-D-A-K-TR
Samtec Inc.

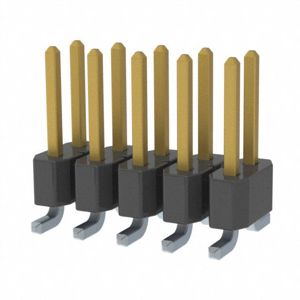

TSM-105-01-SS-DV-P-TR
Sullins Connector Solutions

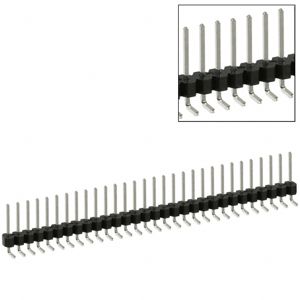

PEC30SGAN
