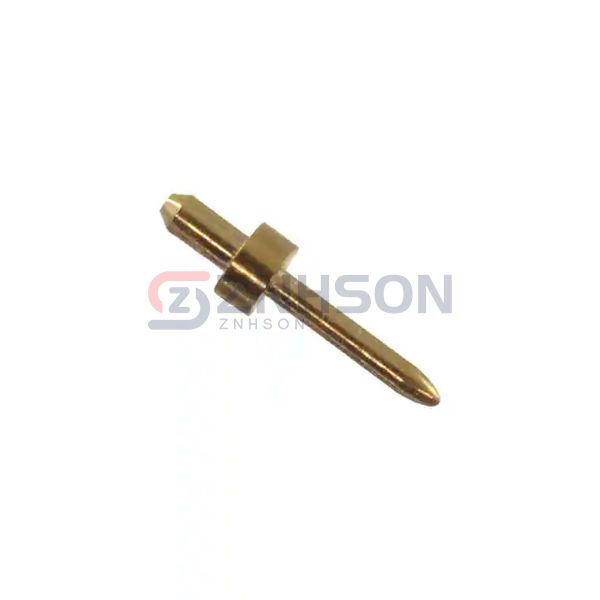

3136-1-00-15-00-00-08-0
Mill-Max Manufacturing Corp.
Mill-Max Manufacturing Corp.
CONN PC PIN CIRC .030DIA GOLD
$0.73
Available to order
Reference Price (USD)
1+
$0.64000
10+
$0.60000
25+
$0.54000
50+
$0.48000
100+
$0.46000
250+
$0.42000
500+
$0.40000
1,000+
$0.33000
2,500+
$0.30000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electrical systems with 3136-1-00-15-00-00-08-0 Mill-Max Manufacturing Corp. Terminals - PC Pin, Single Post Connectors, designed for superior performance and longevity. These connectors boast features like gold-plated contacts, vibration resistance, and quick-connect design, ensuring reliable operation in critical applications. From consumer electronics to industrial machinery, our connectors deliver consistent results. Contact us now for more details and special offers.
Specifications
- Product Status: Active
- Terminal Type: PC Pin
- Terminal Style: Double End
- Pin Size - Above Flange: 0.040" (1.02mm) Dia
- Pin Size - Below Flange: 0.030" (0.76mm) Dia
- Length - Above Flange: 0.082" (2.08mm)
- Length - Below Flange: 0.180" (4.57mm)
- Length - Overall: 0.302" (7.67mm)
- Flange Diameter: 0.078" (1.98mm)
- Mounting Hole Diameter: 0.043" (1.09mm)
- Mounting Type: Through Hole
- Termination: Solder
- Insulation: Non-Insulated
- Board Thickness: 0.062" (1.57mm)
- Contact Material: Brass Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
