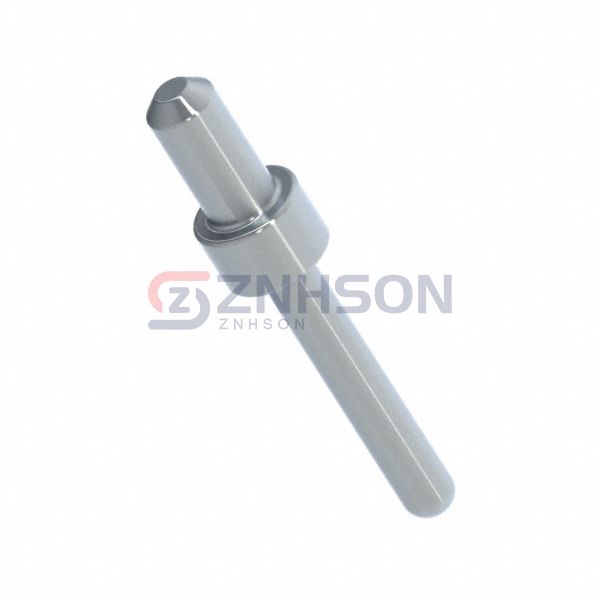

3137-1-00-80-00-00-08-0
Mill-Max Manufacturing Corp.
Mill-Max Manufacturing Corp.
CONN PC PIN CIRC
$0.40
Available to order
Reference Price (USD)
1,000+
$0.48000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose 3137-1-00-80-00-00-08-0 Mill-Max Manufacturing Corp. Terminals - PC Pin, Single Post Connectors for dependable and high-performance electrical connections. With attributes such as high-temperature tolerance, low contact resistance, and compact size, these connectors are perfect for space-constrained applications. They are widely used in automotive, aerospace, and renewable energy sectors. Submit your inquiry today, and let us help you find the right connectors for your project.
Specifications
- Product Status: Active
- Terminal Type: PC Pin
- Terminal Style: Double End
- Pin Size - Above Flange: 0.040" (1.02mm) Dia
- Pin Size - Below Flange: 0.030" (0.76mm) Dia
- Length - Above Flange: 0.082" (2.08mm)
- Length - Below Flange: 0.180" (4.57mm)
- Length - Overall: 0.302" (7.67mm)
- Flange Diameter: 0.062" (1.57mm)
- Mounting Hole Diameter: 0.043" (1.09mm)
- Mounting Type: Through Hole
- Termination: Solder
- Insulation: Non-Insulated
- Board Thickness: 0.062" (1.57mm)
- Contact Material: Brass Alloy
- Contact Finish: Tin
- Contact Finish Thickness: 200.0µin (5.08µm)
