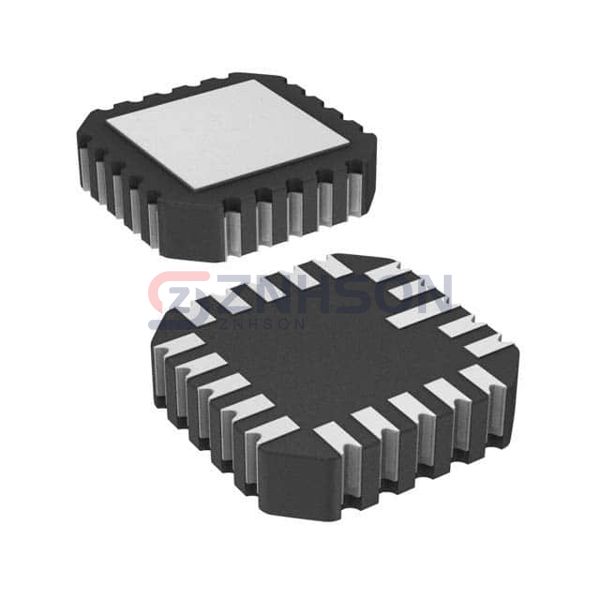

5962-9800103K2A
Broadcom Limited
Broadcom Limited
OPTOISO 1.5KV 2CH OPN COL 20LCCC
$565.74
Available to order
Reference Price (USD)
8+
$470.02125
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Broadcom Limited 5962-9800103K2A Optoisolators - Logic Output are designed for high-performance signal isolation in critical applications. Featuring robust construction, high noise immunity, and fast response times, these isolators are perfect for use in harsh industrial environments, automotive systems, and smart grids. Partner with Broadcom Limited for superior quality. Contact us for details!
Specifications
- Product Status: Active
- Number of Channels: 2
- Inputs - Side 1/Side 2: 2/0
- Voltage - Isolation: 1500VDC
- Common Mode Transient Immunity (Min): 1kV/µs
- Input Type: DC
- Output Type: Open Collector, Schottky Clamped
- Current - Output / Channel: 25 mA
- Data Rate: 10MBd
- Propagation Delay tpLH / tpHL (Max): 100ns, 100ns
- Rise / Fall Time (Typ): 35ns, 35ns
- Voltage - Forward (Vf) (Typ): 1.5V
- Current - DC Forward (If) (Max): 20mA
- Voltage - Supply: 4.5V ~ 5.5V
- Operating Temperature: -55°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 20-CLCC
- Supplier Device Package: 20-LCCC (8.89x8.89)
