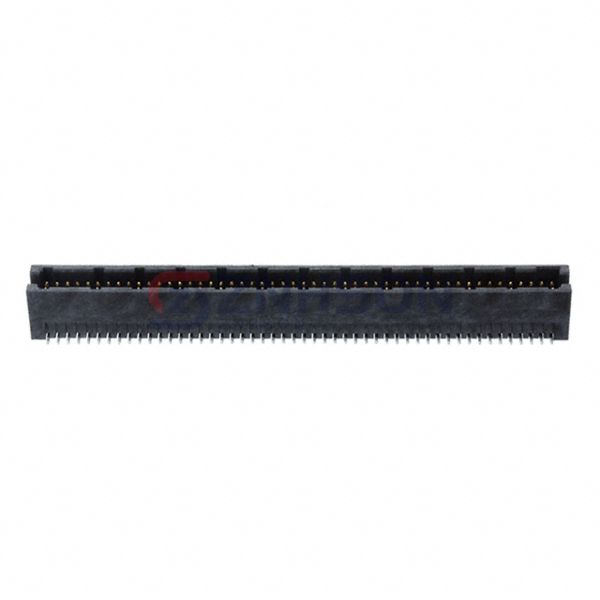

6-104656-0
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER SMD 100POS 1.27MM
$10.75
Available to order
Reference Price (USD)
1+
$16.37000
16+
$15.19750
104+
$11.69029
504+
$10.67710
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your project's efficiency with 6-104656-0 TE Connectivity AMP Connectors Rectangular Connectors - Headers, Male Pins. These connectors ensure low insertion force, high mating cycles, and EMI shielding for superior performance. Ideal for medical equipment, robotics, and telecommunications. Need a quote? Contact us today and let s discuss your requirements!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 100
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.120" (3.05mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.298" (7.57mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Lock
- Operating Temperature: -65°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 0.5A per Contact
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
4-103747-0-08
Samtec Inc.
TSM-104-01-L-DH-A-P-TR
Amphenol ICC (FCI)
77313-802-56LF
Amphenol ICC (FCI)
95278-802B24LF
TE Connectivity AMP Connectors
5499786-3
TE Connectivity AMP Connectors
1-794637-8
Harwin Inc.
M80-7002722
Amphenol ICC (FCI)
77311-402-27LF
Mill-Max Manufacturing Corp.

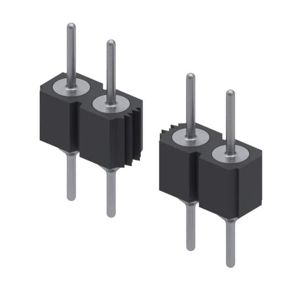

350-90-120-00-001000
