7448709220
Würth Elektronik
Würth Elektronik

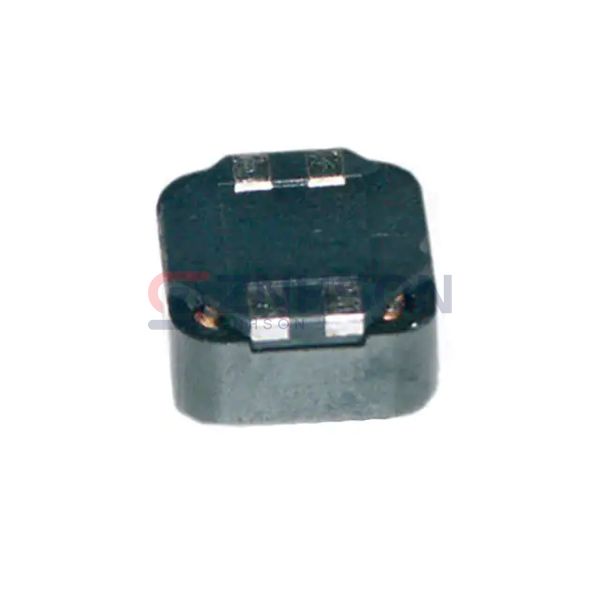

INDUCT ARRAY 2 COIL 22UH SMD
$3.45
Available to order
Reference Price (USD)
1+
$3.45000
500+
$3.4155
1000+
$3.381
1500+
$3.3465
2000+
$3.312
2500+
$3.2775
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 7448709220 Würth Elektronik Inductors, Coils, and Chokes are designed to excel in Arrays and Signal Transformers applications. Offering high efficiency, compact size, and robust performance, they are ideal for portable electronics and power management systems. Don t miss out get a quote today and see why leading engineers trust our products!
Specifications
- Product Status: Active
- Number of Coils: 2
- Inductance - Connected In Parallel: 22 µH
- Inductance - Connected In Series: 88 µH
- Tolerance: ±20%
- Current Rating - Parallel: 2.5 A
- Current Rating - Series: 1.25 A
- Current Saturation - Parallel: 5 A
- Current Saturation - Series: 2.5 A
- DC Resistance (DCR) - Parallel: 80mOhm Max
- DC Resistance (DCR) - Series: -
- Shielding: Shielded
- Ratings: -
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Size / Dimension: 0.492" L x 0.492" W (12.50mm x 12.50mm)
- Height: 0.413" (10.50mm)
