7504-0-00-15-00-00-03-0
Mill-Max Manufacturing Corp.
Mill-Max Manufacturing Corp.

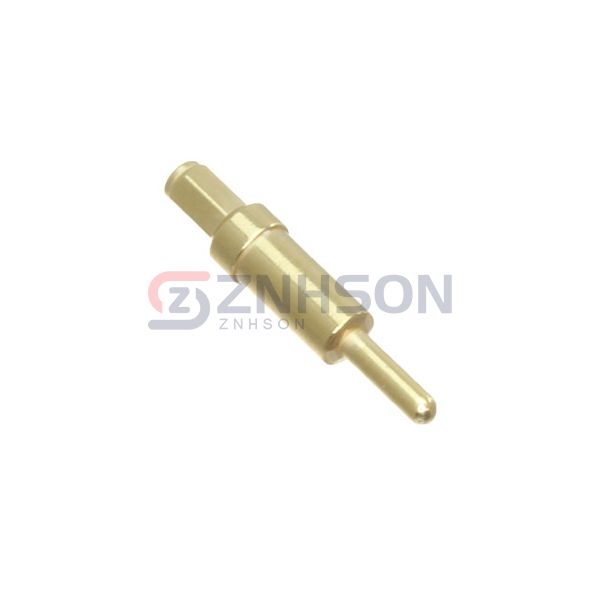

PRESS-FIT PCB PIN
$0.40
Available to order
Reference Price (USD)
1+
$0.35000
10+
$0.32700
25+
$0.28040
50+
$0.23820
100+
$0.22880
250+
$0.20548
500+
$0.19614
1,000+
$0.16345
2,500+
$0.14944
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electrical systems with 7504-0-00-15-00-00-03-0 Mill-Max Manufacturing Corp. Terminals - PC Pin, Single Post Connectors, designed for superior performance and longevity. These connectors boast features like gold-plated contacts, vibration resistance, and quick-connect design, ensuring reliable operation in critical applications. From consumer electronics to industrial machinery, our connectors deliver consistent results. Contact us now for more details and special offers.
Specifications
- Product Status: Active
- Terminal Type: PC Pin
- Terminal Style: Single End
- Pin Size - Above Flange: 0.040" (1.02mm) Dia
- Pin Size - Below Flange: 0.058" (1.47mm) Dia
- Length - Above Flange: 0.310" (7.87mm)
- Length - Below Flange: 0.100" (2.54mm)
- Length - Overall: 0.460" (11.68mm)
- Flange Diameter: 0.093" (2.36mm)
- Mounting Hole Diameter: 0.068" (1.73mm)
- Mounting Type: Through Hole
- Termination: Press-Fit
- Insulation: Non-Insulated
- Board Thickness: -
- Contact Material: Brass Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
