929705-01-13-EU
3M
3M

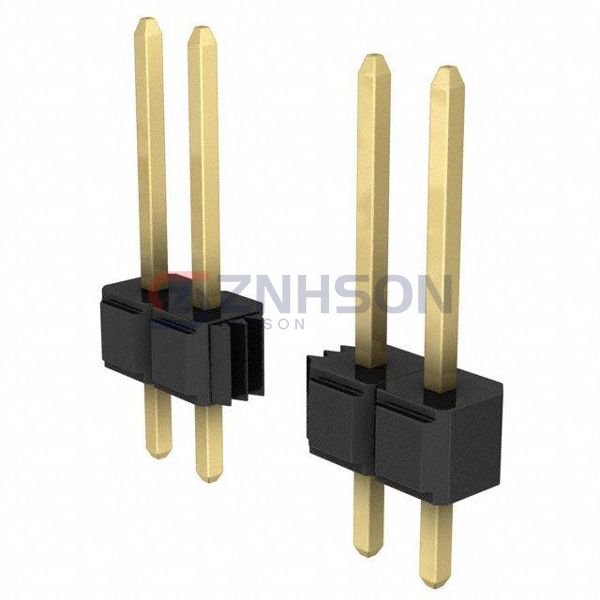

CONN HEADER VERT 13POS 2.54MM
$2.57
Available to order
Reference Price (USD)
1+
$2.44000
10+
$2.21700
25+
$2.08120
50+
$1.99060
100+
$1.90010
250+
$1.71912
500+
$1.58340
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 929705-01-13-EU 3M Rectangular Connectors - Headers, Male Pins are the perfect choice for high-performance electronic connections. Designed for durability and efficiency, they support a wide range of applications, from automotive to IoT devices. Experience the 3M difference today. Contact us for more details and a customized solution!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 13
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: 0.528" (13.42mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
