929836-02-21-RK
3M
3M

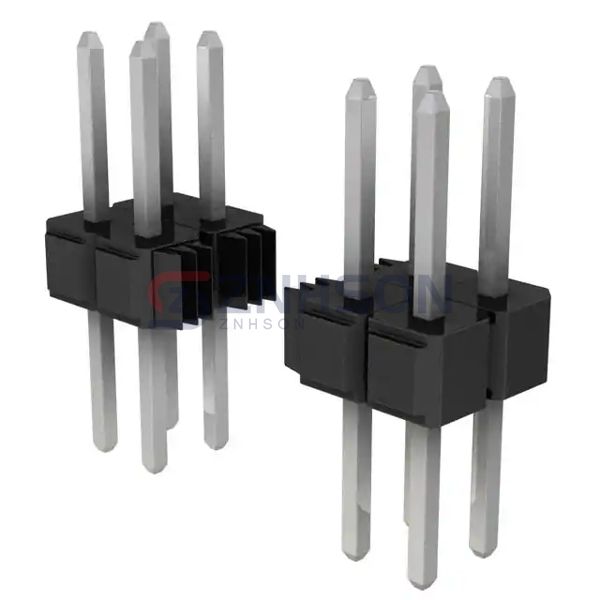

CONN HEADER VERT 42POS 2.54MM
$2.65
Available to order
Reference Price (USD)
1+
$2.52000
10+
$2.41900
25+
$2.21760
50+
$2.11680
100+
$2.01600
250+
$1.76400
500+
$1.71360
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 929836-02-21-RK 3M Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 42
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.235" (5.97mm)
- Contact Length - Post: 0.210" (5.33mm)
- Overall Contact Length: 0.545" (13.84mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 200.0µin (5.08µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
Related Products
Molex
0878320608
Preci-Dip
894-70-018-20-002101
Molex
0532614011
Samtec Inc.
TFC-115-02-L-D-A-K
Samtec Inc.
HTSW-105-08-T-S-RA
Sullins Connector Solutions

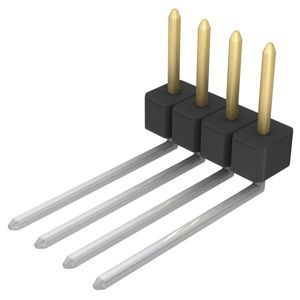

PBC04SBEN
Amphenol ICC (FCI)

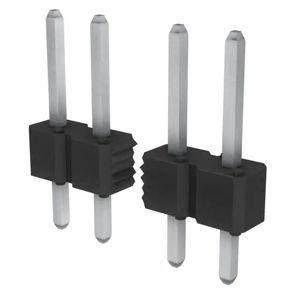

77311-418-24LF
Samtec Inc.

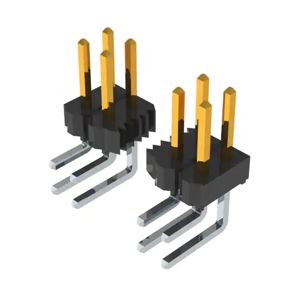

TSW-140-08-S-D-RA
