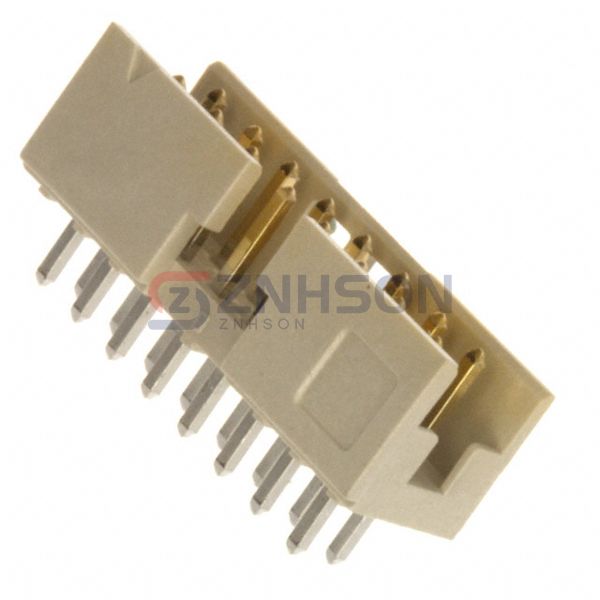

98414-G06-16LF
Amphenol ICC (FCI)
Amphenol ICC (FCI)
CONN HEADER VERT 16POS 2MM
$1.61
Available to order
Reference Price (USD)
1+
$1.50000
10+
$1.36300
100+
$1.16800
500+
$0.97336
1,000+
$0.83430
5,000+
$0.73975
10,000+
$0.72306
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 98414-G06-16LF Amphenol ICC (FCI) Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 16
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: 0.157" (4.00mm)
- Contact Length - Post: 0.098" (2.50mm)
- Overall Contact Length: -
- Insulation Height: 0.232" (5.90mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold, GXT™
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: Keying Slot
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Cream
- Current Rating (Amps): 2A (AC/DC)
- Voltage Rating: 200V (AC/DC)
