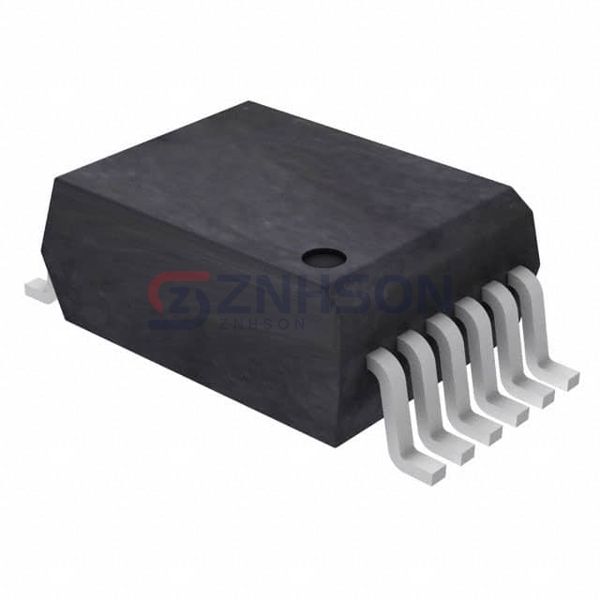

ACFL-6211T-560E
Broadcom Limited
Broadcom Limited
OPTOISO 5KV 2CH PSH PULL SO12
$4.46
Available to order
Reference Price (USD)
1,000+
$3.69200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your systems with Broadcom Limited ACFL-6211T-560E Optoisolators - Logic Output, offering superior isolation and signal integrity. With features like low power consumption, high reliability, and wide operating temperature range, these optoisolators are perfect for use in power supplies, motor controls, and data acquisition systems. Trust Broadcom Limited for top-tier performance. Request a sample or inquire now!
Specifications
- Product Status: Active
- Number of Channels: 2
- Inputs - Side 1/Side 2: 1/1
- Voltage - Isolation: 5000Vrms
- Common Mode Transient Immunity (Min): 15kV/µs
- Input Type: DC
- Output Type: Push-Pull, Totem Pole
- Current - Output / Channel: 10 mA
- Data Rate: 15MBd
- Propagation Delay tpLH / tpHL (Max): 35ns, 35ns
- Rise / Fall Time (Typ): 10ns, 10ns
- Voltage - Forward (Vf) (Typ): 1.5V
- Current - DC Forward (If) (Max): 20mA
- Voltage - Supply: 3V ~ 5.5V
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 12-BSOP (0.295", 7.50mm Width)
- Supplier Device Package: 12-SO
