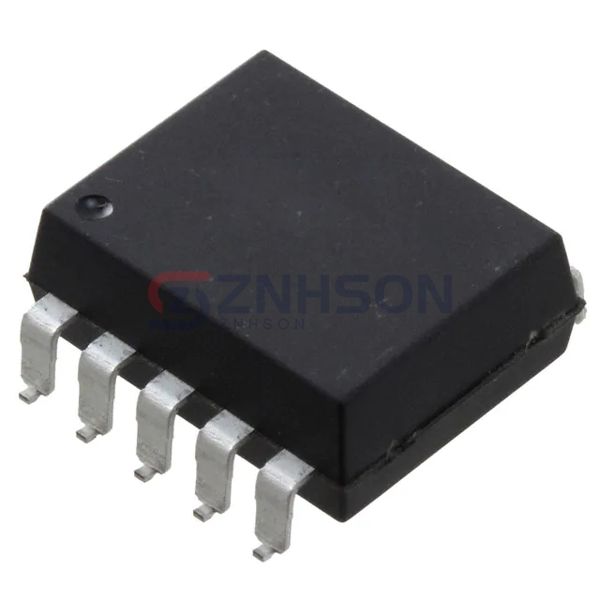

ACNV2601-500E
Broadcom Limited
Broadcom Limited
OPTOISO 7.5KV OPEN COLL 10DIP GW
$7.43
Available to order
Reference Price (USD)
1+
$7.43000
500+
$7.3557
1000+
$7.2814
1500+
$7.2071
2000+
$7.1328
2500+
$7.0585
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your systems with Broadcom Limited ACNV2601-500E Optoisolators - Logic Output, offering superior isolation and signal integrity. With features like low power consumption, high reliability, and wide operating temperature range, these optoisolators are perfect for use in power supplies, motor controls, and data acquisition systems. Trust Broadcom Limited for top-tier performance. Request a sample or inquire now!
Specifications
- Product Status: Active
- Number of Channels: 1
- Inputs - Side 1/Side 2: 1/0
- Voltage - Isolation: 7500Vrms
- Common Mode Transient Immunity (Min): 20kV/µs
- Input Type: DC
- Output Type: Open Collector, Schottky Clamped
- Current - Output / Channel: 50 mA
- Data Rate: 10MBd
- Propagation Delay tpLH / tpHL (Max): 80ns, 80ns
- Rise / Fall Time (Typ): 25ns, 10ns
- Voltage - Forward (Vf) (Typ): 1.64V
- Current - DC Forward (If) (Max): 20mA
- Voltage - Supply: 4.5V ~ 5.5V
- Operating Temperature: -40°C ~ 105°C
- Mounting Type: Surface Mount
- Package / Case: 10-SMD, Gull Wing
- Supplier Device Package: 10-DIP Gull Wing
