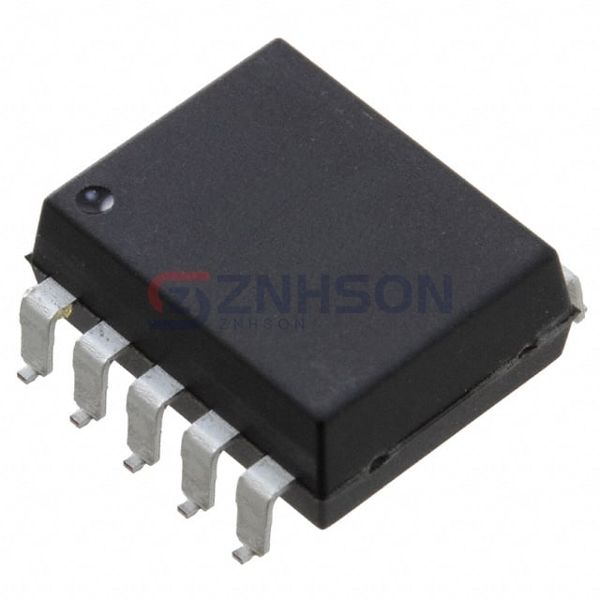

ACNV3130-500E
Broadcom Limited
Broadcom Limited
OPTOISO 7.5KV GATE DRVR 10DIP GW
$4.47
Available to order
Reference Price (USD)
1,500+
$3.21860
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your system s efficiency with Broadcom Limited ACNV3130-500E Gate Driver Isolators, built for rugged industrial environments. Highlights include high-speed data transfer, thermal shutdown protection, and robust construction. Ideal for servo drives, renewable energy converters, and medical devices, these isolators deliver consistent performance. Let s discuss your needs reach out today!
Specifications
- Product Status: Active
- Technology: Optical Coupling
- Number of Channels: 1
- Voltage - Isolation: 7500Vrms
- Common Mode Transient Immunity (Min): 40kV/µs
- Propagation Delay tpLH / tpHL (Max): 500ns, 500ns
- Pulse Width Distortion (Max): 300ns
- Rise / Fall Time (Typ): 100ns, 100ns
- Current - Output High, Low: 2A, 2A
- Current - Peak Output: 2.5A
- Voltage - Forward (Vf) (Typ): 1.6V
- Current - DC Forward (If) (Max): 25 mA
- Voltage - Output Supply: 15V ~ 30V
- Operating Temperature: -40°C ~ 105°C
- Mounting Type: Surface Mount
- Package / Case: 10-SMD, Gull Wing
- Supplier Device Package: 10-DIP Gull Wing
- Approval Agency: CSA, IEC/EN/DIN, UR
