ACPL-074L-500E
Broadcom Limited
Broadcom Limited
OPTOISO 3.75KV 2CH PUSH PULL 8SO
$6.89
Available to order
Reference Price (USD)
1+
$6.89000
500+
$6.8211
1000+
$6.7522
1500+
$6.6833
2000+
$6.6144
2500+
$6.5455
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your system's performance with Broadcom Limited ACPL-074L-500E Optoisolators - Logic Output. These isolators provide excellent signal integrity, high isolation voltage, and low propagation delay, making them suitable for power electronics, robotics, and communication systems. Choose Broadcom Limited for dependable isolation solutions. Inquire today for bulk pricing!
Specifications
- Product Status: Active
- Number of Channels: 2
- Inputs - Side 1/Side 2: 2/0
- Voltage - Isolation: 3750Vrms
- Common Mode Transient Immunity (Min): 10kV/µs
- Input Type: DC
- Output Type: Push-Pull, Totem Pole
- Current - Output / Channel: 10 mA
- Data Rate: 15MBd
- Propagation Delay tpLH / tpHL (Max): 50ns, 50ns
- Rise / Fall Time (Typ): 20ns, 25ns
- Voltage - Forward (Vf) (Typ): 1.5V
- Current - DC Forward (If) (Max): 20mA
- Voltage - Supply: 3V ~ 3.6V, 4.5V ~ 5.5V
- Operating Temperature: -40°C ~ 105°C
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 8-SO Tall
Related Products
Broadcom Limited
HCPL-7721-000E
Broadcom Limited
ACPL-M21L-060E
Broadcom Limited
ACPL-P480-020E
Renesas Electronics America Inc
PS9924-Y-F3-AX
Broadcom Limited
5962-0824202KPC
Broadcom Limited
HCPL-0630-500E
Broadcom Limited
HCPL-4506-300E
Toshiba Semiconductor and Storage

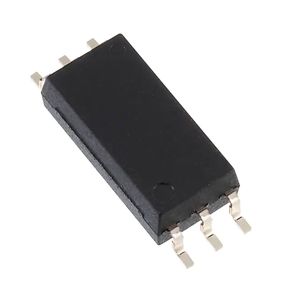

TLP2761(D4,E
