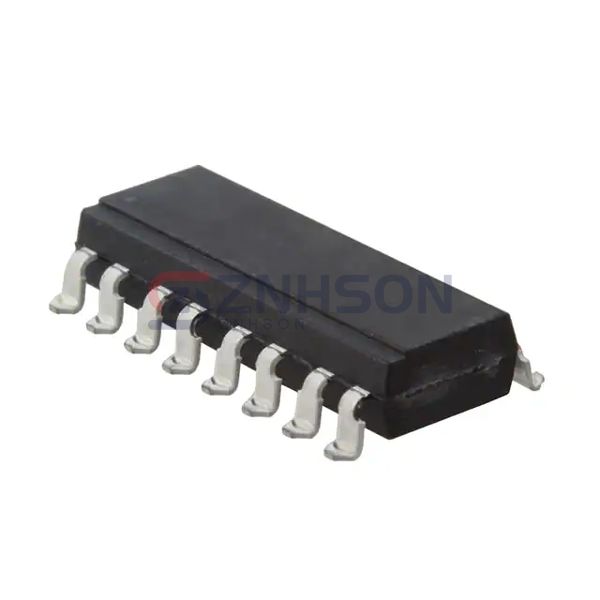

ACPL-5160-300
Broadcom Limited
Broadcom Limited
OPTOISO 1.5KV GATE DRVR 16SMDGW
$162.43
Available to order
Reference Price (USD)
25+
$130.73200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Broadcom Limited ACPL-5160-300 Gate Driver Isolators offer cutting-edge technology for secure and efficient power management. With features like reinforced insulation, compact design, and high voltage tolerance, these isolators are suited for UPS systems, robotics, and smart grid applications. Trust Broadcom Limited for reliability and innovation. Get in touch for technical support and bulk order discounts!
Specifications
- Product Status: Active
- Technology: Optical Coupling
- Number of Channels: 1
- Voltage - Isolation: 1500VDC
- Common Mode Transient Immunity (Min): 9kV/µs
- Propagation Delay tpLH / tpHL (Max): 500ns, 500ns
- Pulse Width Distortion (Max): 300ns
- Rise / Fall Time (Typ): 100ns, 100ns
- Current - Output High, Low: 2A, 2A
- Current - Peak Output: 2.5A
- Voltage - Forward (Vf) (Typ): -
- Current - DC Forward (If) (Max): -
- Voltage - Output Supply: 15V ~ 30V
- Operating Temperature: -55°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 16-SMD, Gull Wing
- Supplier Device Package: 16-SMD Gull Wing
- Approval Agency: -
