ACPL-M61T
Broadcom Limited
Broadcom Limited
OPTOISO 4KV OPN COLLECTOR 5SO
$4.62
Available to order
Reference Price (USD)
1,000+
$3.46450
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your circuit protection with Broadcom Limited ACPL-M61T Optoisolators - Logic Output. These isolators provide superior electrical isolation, low power dissipation, and high common-mode rejection, perfect for medical devices, test equipment, and IoT applications. Trust Broadcom Limited for cutting-edge solutions. Reach out for a customized quote!
Specifications
- Product Status: Active
- Number of Channels: 1
- Inputs - Side 1/Side 2: 1/0
- Voltage - Isolation: 4000Vrms
- Common Mode Transient Immunity (Min): 15kV/µs
- Input Type: DC
- Output Type: Open Collector, Schottky Clamped
- Current - Output / Channel: 50 mA
- Data Rate: 10MBd
- Propagation Delay tpLH / tpHL (Max): 75ns, 75ns
- Rise / Fall Time (Typ): 24ns, 10ns
- Voltage - Forward (Vf) (Typ): 1.5V
- Current - DC Forward (If) (Max): 20mA
- Voltage - Supply: 4.5V ~ 5.5V
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 6-SOIC (0.173", 4.40mm Width), 5 Leads
- Supplier Device Package: 5-SO
Related Products
Broadcom Limited
5962-8957101PA
onsemi
HCPL2630S
Renesas Electronics America Inc
PS9822-1-L-AX
Broadcom Limited

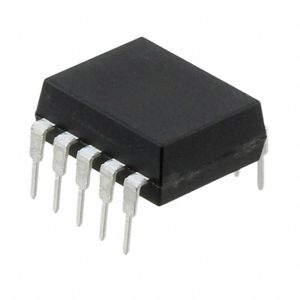

ACNV260E-000E
Toshiba Semiconductor and Storage

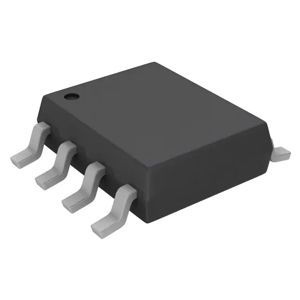

TLP2110(TP,F)
