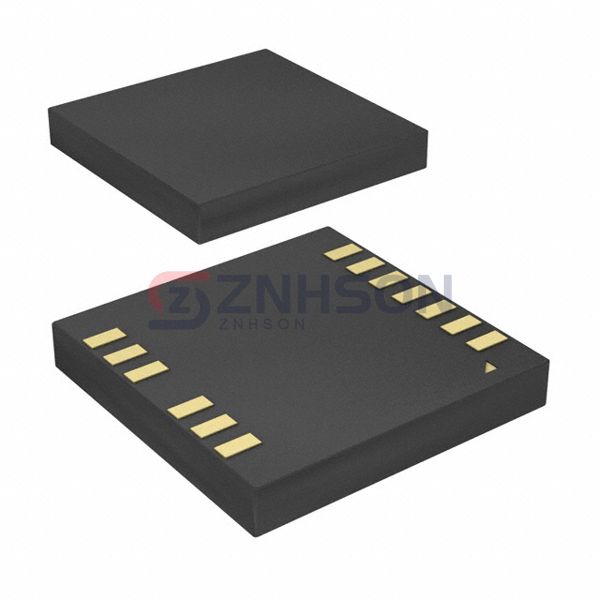

ADUM7223BCCZ
Analog Devices Inc.
Analog Devices Inc.
DGTL ISO 2.5KV GATE DRIVER 13LGA
$5.56
Available to order
Reference Price (USD)
1+
$4.82000
10+
$4.32700
490+
$3.36331
980+
$3.01788
1,470+
$2.54520
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Analog Devices Inc. ADUM7223BCCZ Gate Driver Isolators provide reliable and efficient isolation for advanced power electronics. With features like low jitter, high CMTI, and extended lifecycle, they are ideal for industrial robots, energy storage systems, and consumer electronics. Unlock superior performance get in touch for expert advice!
Specifications
- Product Status: Active
- Technology: Magnetic Coupling
- Number of Channels: 2
- Voltage - Isolation: 2500Vrms
- Common Mode Transient Immunity (Min): 50kV/µs
- Propagation Delay tpLH / tpHL (Max): 62ns, 62ns
- Pulse Width Distortion (Max): -
- Rise / Fall Time (Typ): 12ns, 12ns
- Current - Output High, Low: -
- Current - Peak Output: 4A
- Voltage - Forward (Vf) (Typ): -
- Current - DC Forward (If) (Max): -
- Voltage - Output Supply: 4.5V ~ 18V
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 13-VFLGA
- Supplier Device Package: 13-LGA (5x5)
- Approval Agency: -
