AP1017AEN
Asahi Kasei Microdevices/AKM
Asahi Kasei Microdevices/AKM
IC H-BRIDGE DVR 1CH 12V 8SON
$0.95
Available to order
Reference Price (USD)
5,000+
$0.29835
10,000+
$0.28730
25,000+
$0.27625
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Asahi Kasei Microdevices/AKM AP1017AEN full/half-bridge drivers set new standards in power management integration. These advanced PMICs combine high-side and low-side drivers with intelligent protection circuits, offering superior performance in harsh electrical environments. Applications span from electric vehicle charging stations to high-power LED lighting systems. With features like shoot-through prevention and adjustable drive current, they provide design flexibility while ensuring system safety. Contact us now for volume pricing and application engineering support.
Specifications
- Product Status: Obsolete
- Output Configuration: Half Bridge (2)
- Applications: General Purpose
- Interface: Logic
- Load Type: Inductive
- Technology: Power MOSFET
- Rds On (Typ): 470mOhm LS + HS
- Current - Output / Channel: 1.56A
- Current - Peak Output: 3.3A
- Voltage - Supply: 2.7V ~ 3.6V
- Voltage - Load: 1.8V ~ 12V
- Operating Temperature: -30°C ~ 150°C (TJ)
- Features: -
- Fault Protection: Over Temperature, UVLO
- Mounting Type: Surface Mount

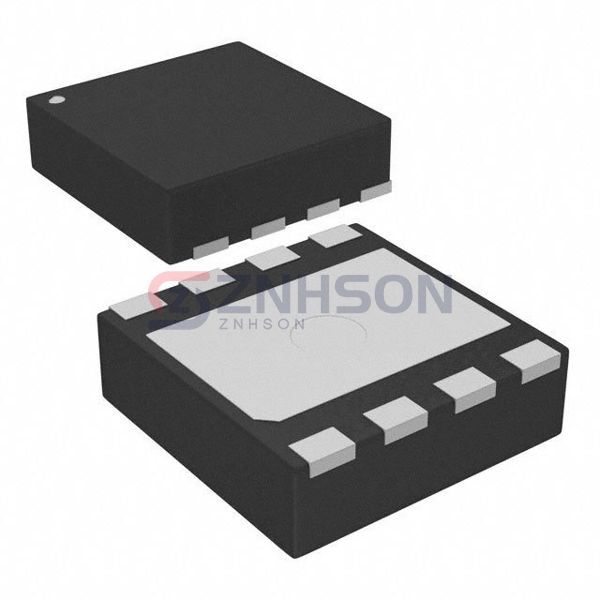

- Package / Case: 8-UFDFN Exposed Pad
- Supplier Device Package: 8-SON (2x2)
