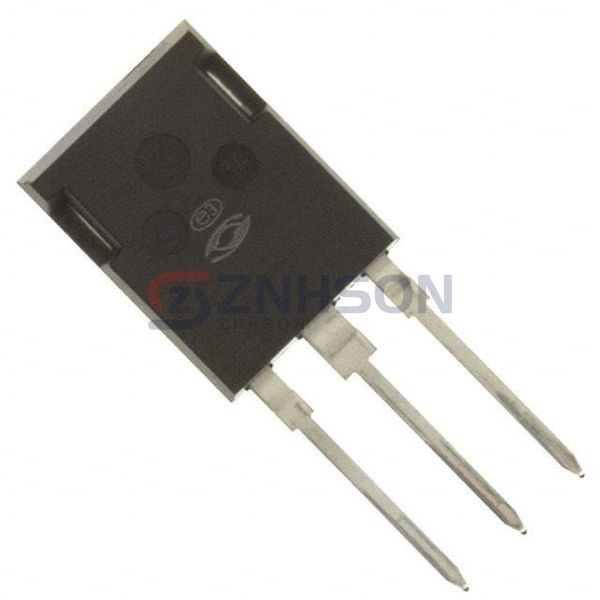

APT25GN120B2DQ2G
Microchip Technology
Microchip Technology
IGBT 1200V 67A 272W TMAX
$10.00
Available to order
Reference Price (USD)
56+
$9.88000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize energy efficiency with APT25GN120B2DQ2G Single IGBTs by Microchip Technology, a trusted name in discrete semiconductors. Suitable for solar inverters, motor controllers, and more, these transistors feature low conduction loss and high switching frequency. Their robust design ensures long-term performance even in harsh environments. Choose APT25GN120B2DQ2G for your next project and experience the Microchip Technology difference. Submit your inquiry today for expert assistance!
Specifications
- Product Status: Active
- IGBT Type: NPT, Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 67 A
- Current - Collector Pulsed (Icm): 75 A
- Vce(on) (Max) @ Vge, Ic: 2.1V @ 15V, 25A
- Power - Max: 272 W
- Switching Energy: 2.15µJ (off)
- Input Type: Standard
- Gate Charge: 155 nC
- Td (on/off) @ 25°C: 22ns/280ns
- Test Condition: 800V, 25A, 4.3Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3 Variant
- Supplier Device Package: -
