APT35GN120L2DQ2G
Microchip Technology
Microchip Technology
IGBT 1200V 94A 379W TO264
$10.78
Available to order
Reference Price (USD)
1+
$13.01000
10+
$11.71100
25+
$10.67040
100+
$9.62940
250+
$8.84860
500+
$8.06784
1,000+
$7.02683
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize power control with APT35GN120L2DQ2G Single IGBTs from Microchip Technology, a leader in semiconductor solutions. Suited for medical equipment, aerospace, and consumer electronics, these transistors deliver precise switching and minimal noise. Highlights include high input impedance, scalable power ratings, and RoHS compliance. Microchip Technology ensures APT35GN120L2DQ2G meets rigorous performance benchmarks. Inquire today to find the perfect fit for your application!
Specifications
- Product Status: Active
- IGBT Type: NPT, Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 94 A
- Current - Collector Pulsed (Icm): 105 A
- Vce(on) (Max) @ Vge, Ic: 2.1V @ 15V, 35A
- Power - Max: 379 W
- Switching Energy: 2.315mJ (off)
- Input Type: Standard
- Gate Charge: 220 nC
- Td (on/off) @ 25°C: 24ns/300ns
- Test Condition: 800V, 35A, 2.2Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-264-3, TO-264AA
- Supplier Device Package: -
Related Products
Infineon Technologies
IGB15N65S5ATMA1
IXYS
IXYH20N120C3D1
Fairchild Semiconductor
FGPF30N30TTU
IXYS
IXBT42N170A
onsemi
AFGHL75T65SQDT
STMicroelectronics
STGWT60H65DFB
Fairchild Semiconductor
HGT1S12N60C3DS

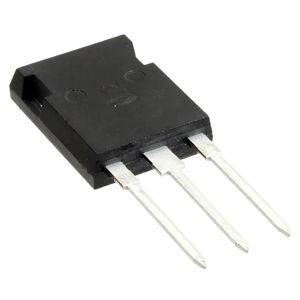

Microchip Technology
APT35GN120BG

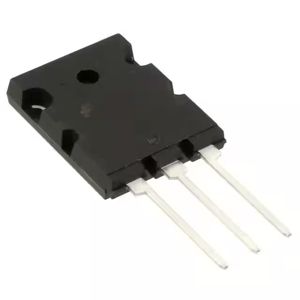

onsemi
FGL60N100BNTD

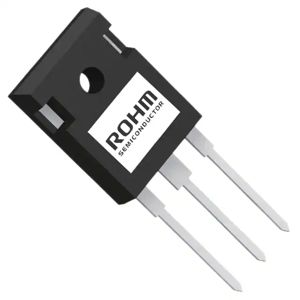

Rohm Semiconductor
