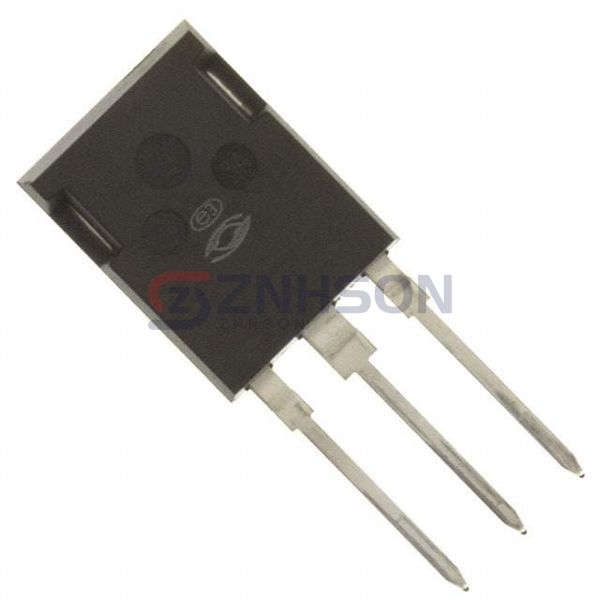

APT50GN120B2G
Microchip Technology
Microchip Technology
IGBT 1200V 134A 543W TO-247
$11.17
Available to order
Reference Price (USD)
1+
$11.85000
10+
$10.77400
25+
$9.96600
100+
$9.15810
250+
$8.35004
500+
$7.81134
1,000+
$7.18284
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The APT50GN120B2G Single IGBT from Microchip Technology delivers unmatched performance in power conversion and control. Ideal for UPS systems, induction heating, and industrial automation, this transistor combines high efficiency with rugged reliability. Features such as short-circuit protection and low EMI make it a standout choice. Microchip Technology's commitment to innovation ensures APT50GN120B2G meets the demands of modern electronics. Get in touch for bulk orders and customization options!
Specifications
- Product Status: Active
- IGBT Type: NPT, Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 134 A
- Current - Collector Pulsed (Icm): 150 A
- Vce(on) (Max) @ Vge, Ic: 2.1V @ 15V, 50A
- Power - Max: 543 W
- Switching Energy: 4495µJ (off)
- Input Type: Standard
- Gate Charge: 315 nC
- Td (on/off) @ 25°C: 28ns/320ns
- Test Condition: 800V, 50A, 2.2Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3 Variant
- Supplier Device Package: -
