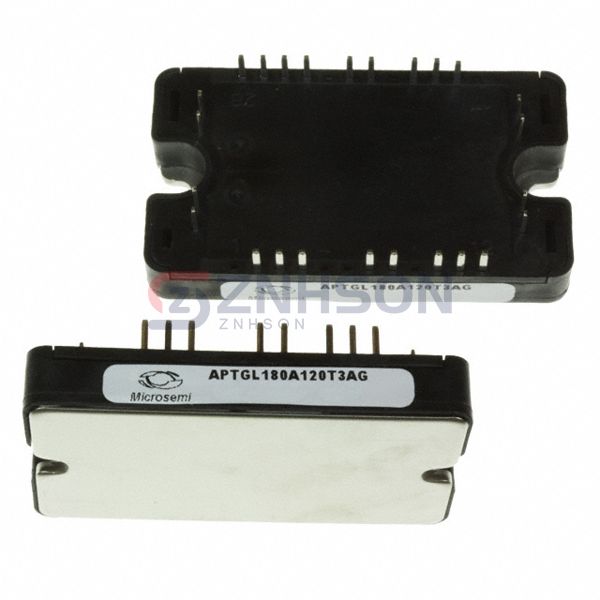

APTGL180A120T3AG
Microchip Technology
Microchip Technology
IGBT MODULE 1200V 230A 940W SP3
$137.14
Available to order
Reference Price (USD)
100+
$73.80720
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-performance APTGL180A120T3AG IGBT Modules from Microchip Technology, designed for robust power management in industrial applications. These modules feature advanced thermal management, high voltage tolerance, and efficient switching capabilities, making them ideal for motor drives, renewable energy systems, and power supplies. Upgrade your systems with reliable Microchip Technology technology. Contact us today for a quote!
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Configuration: Half Bridge
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 230 A
- Power - Max: 940 W
- Vce(on) (Max) @ Vge, Ic: 2.2V @ 15V, 150A
- Current - Collector Cutoff (Max): 300 µA
- Input Capacitance (Cies) @ Vce: 9.3 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 175°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: SP3
- Supplier Device Package: SP3
