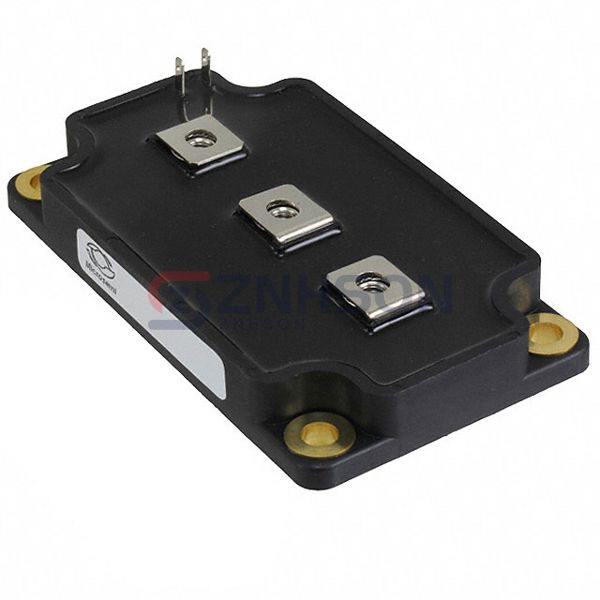

APTGT150SK120G
Microchip Technology
Microchip Technology
IGBT MODULE 1200V 220A 690W SP6
$159.18
Available to order
Reference Price (USD)
1+
$91.93000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Microchip Technology's APTGT150SK120G IGBT Module is engineered for high-power applications requiring stability and longevity. Key features include integrated temperature monitoring and low EMI emissions, perfect for medical devices and traction systems. Choose quality contact us for technical specifications and lead times.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Configuration: Single
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 220 A
- Power - Max: 690 W
- Vce(on) (Max) @ Vge, Ic: 2.1V @ 15V, 150A
- Current - Collector Cutoff (Max): 350 µA
- Input Capacitance (Cies) @ Vce: 10.7 nF @ 25 V
- Input: Standard
- NTC Thermistor: No
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: SP6
- Supplier Device Package: SP6
