B64290L0616X830
EPCOS - TDK Electronics
EPCOS - TDK Electronics

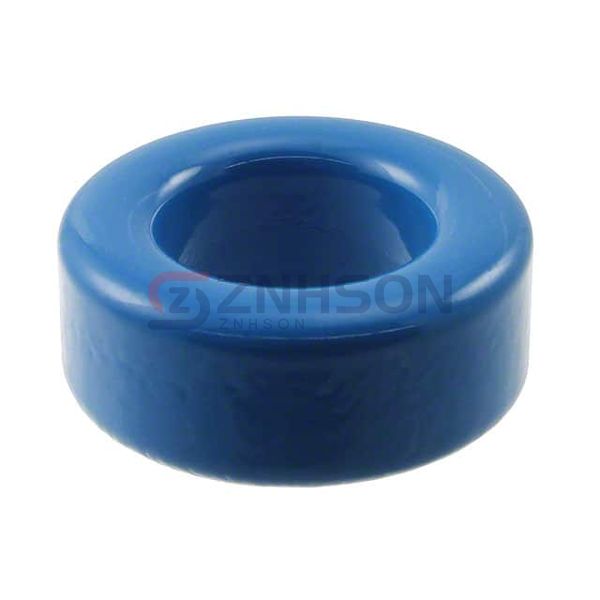

FERRITE CORE TOROID 9.16UH N30
$4.34
Available to order
Reference Price (USD)
1+
$3.03000
10+
$2.59300
25+
$1.94480
50+
$1.89080
100+
$1.67460
250+
$1.56660
500+
$1.45854
1,000+
$1.35050
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Elevate your circuit designs with EPCOS - TDK Electronics B64290L0616X830 Ferrite Cores, renowned for their high permeability and minimal energy dissipation. These cores are pivotal in creating efficient transformers, inductors, and chokes for various industries. Their robust performance in high-frequency applications makes them ideal for telecommunications and power electronics. Don't miss out on top-tier quality contact us now for pricing and availability details!
Specifications
- Product Status: Active
- Core Type: Toroid
- Supplier Device Package: -
- Material: N30
- Diameter: 1.047" (26.60mm)
- Inductance Factor (Al): 9.16 µH
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): -
- Initial Permeability (µi): 4300
- Core Factor (ΣI/A) mm-1: 0.59
- Effective Length (le) mm: 60.07
- Effective Area (Ae) mm²: 102.5
- Minimum Core Cross Section (Amin) mm²: -
- Effective Magnetic Volume (Ve) mm³: 6157
- Finish: Epoxy
- Height: 0.839" (21.30mm)
- Length: -
- Width: -
