B65513J0000R049
EPCOS - TDK Electronics
EPCOS - TDK Electronics

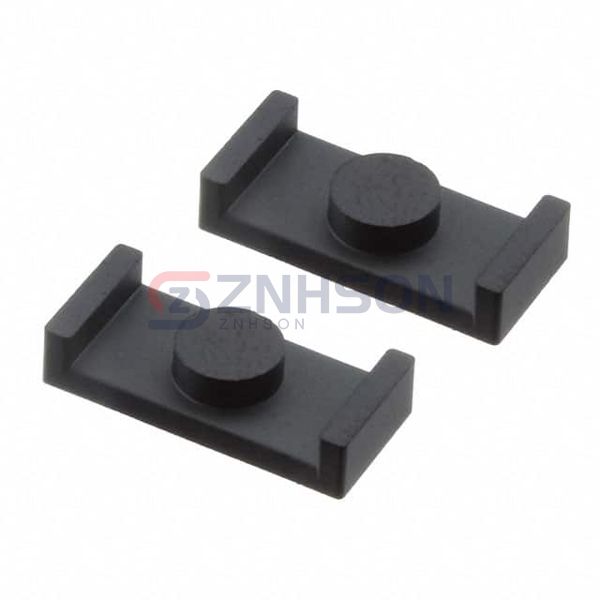

FERRITE CORE ER 1.1UH N49 2PCS
$2.25
Available to order
Reference Price (USD)
1+
$1.57000
10+
$1.35200
25+
$1.02720
50+
$0.97300
100+
$0.86500
250+
$0.81092
500+
$0.75684
1,000+
$0.69467
5,000+
$0.67575
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Elevate your circuit designs with EPCOS - TDK Electronics B65513J0000R049 Ferrite Cores, renowned for their high permeability and minimal energy dissipation. These cores are pivotal in creating efficient transformers, inductors, and chokes for various industries. Their robust performance in high-frequency applications makes them ideal for telecommunications and power electronics. Don't miss out on top-tier quality contact us now for pricing and availability details!
Specifications
- Product Status: Active
- Core Type: ER
- Supplier Device Package: ER 14.5 x 6
- Material: N49
- Diameter: -
- Inductance Factor (Al): 1.1 µH
- Tolerance: -20%, +30%
- Gap: Ungapped
- Effective Permeability (µe): 800
- Initial Permeability (µi): 1500
- Core Factor (ΣI/A) mm-1: 1.1
- Effective Length (le) mm: 19
- Effective Area (Ae) mm²: 17.6
- Minimum Core Cross Section (Amin) mm²: -
- Effective Magnetic Volume (Ve) mm³: 333
- Finish: Uncoated
- Height: 0.116" (2.95mm)
- Length: 0.571" (14.50mm)
- Width: 0.264" (6.70mm)
Related Products
EPCOS - TDK Electronics
B64290L0038X037
Ferroxcube
P66/56-3C91
Fair-Rite Products Corp.
5976000211
Fair-Rite Products Corp.
5976022121
EPCOS - TDK Electronics
B65887E0000R041
EPCOS - TDK Electronics
B65523J0100J087
Fair-Rite Products Corp.
9478202002
Fair-Rite Products Corp.
5978011101
Fair-Rite Products Corp.

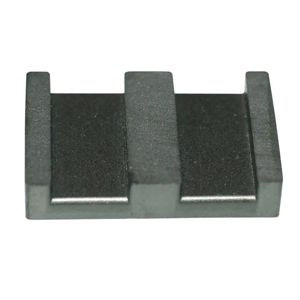

9478207002
