B65541D0160A048
EPCOS - TDK Electronics
EPCOS - TDK Electronics

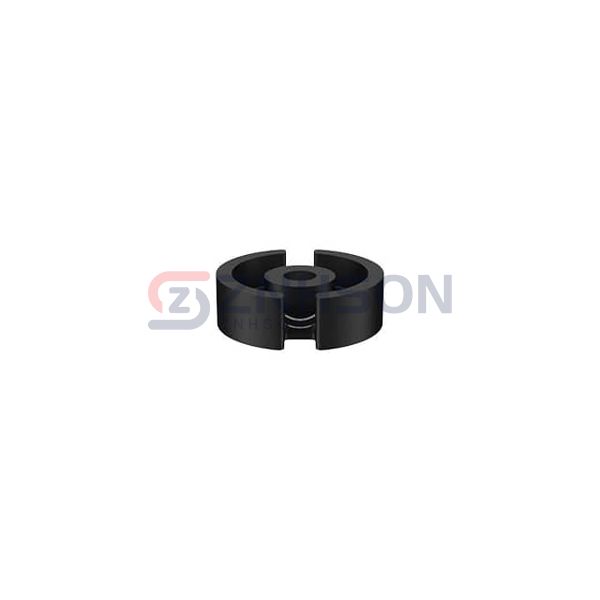

FERRITE CORE P 160NH N48 2PCS
$1.29
Available to order
Reference Price (USD)
1,000+
$0.97018
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Achieve optimal power management with EPCOS - TDK Electronics B65541D0160A048 Ferrite Cores, crafted for high-performance energy conversion and filtering. These cores are essential in designing efficient power supplies, RF devices, and noise suppression circuits. With excellent thermal stability and low core loss, they are suitable for harsh operating conditions. Trusted by engineers worldwide for critical applications. Reach out to our team for expert advice and customized solutions!
Specifications
- Product Status: Active
- Core Type: P (Pot Core)
- Supplier Device Package: P 14 x 8
- Material: N48
- Diameter: 0.563" (14.30mm)
- Inductance Factor (Al): 160 nH
- Tolerance: ±3%
- Gap: Gapped
- Effective Permeability (µe): 102
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 0.8
- Effective Length (le) mm: 20
- Effective Area (Ae) mm²: 25
- Minimum Core Cross Section (Amin) mm²: 20
- Effective Magnetic Volume (Ve) mm³: 500
- Finish: Uncoated
- Height: 0.167" (4.25mm)
- Length: -
- Width: -
Related Products
Ferroxcube
ETD44/22/15-3C97
TDK Corporation
PC95EI22/8/16-Z
EPCOS - TDK Electronics
B66325G0000X197
EPCOS - TDK Electronics
B65847A0000R030
Ferroxcube
EFD12/6/3.5-3F36-S
EPCOS - TDK Electronics
B65661N0160A048
Ferroxcube

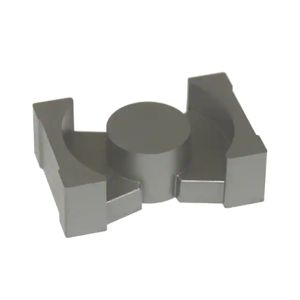

PQ32/20-3F36
EPCOS - TDK Electronics

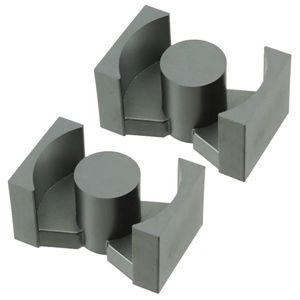

B65883A0000R095
EPCOS - TDK Electronics

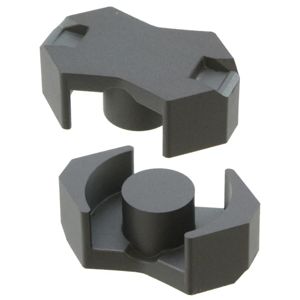

B65819J0000R030
