B65661D0000R001
EPCOS - TDK Electronics
EPCOS - TDK Electronics

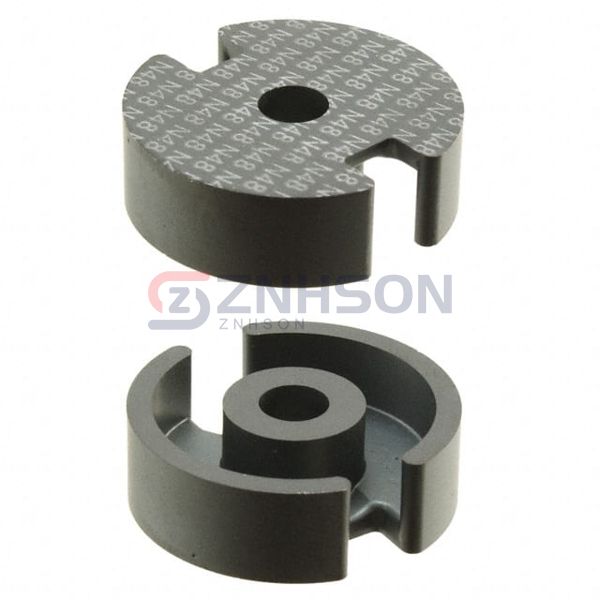

FERRITE CORE P 220NH K1 2PCS
$4.29
Available to order
Reference Price (USD)
800+
$3.06943
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic systems with EPCOS - TDK Electronics B65661D0000R001 Ferrite Cores, designed to deliver superior magnetic performance and durability. These cores are widely used in power conversion, signal processing, and noise filtering applications. Their high-frequency capabilities and thermal resilience make them ideal for advanced electronics. Whether for IoT devices or automotive applications, our Ferrite Cores stand out. Request a consultation with our experts to find the best solution for your needs!
Specifications
- Product Status: Active
- Core Type: P (Pot Core)
- Supplier Device Package: P 22 x 13
- Material: K1
- Diameter: 0.866" (22.00mm)
- Inductance Factor (Al): 220 nH
- Tolerance: -20%, +30%
- Gap: Ungapped
- Effective Permeability (µe): 88
- Initial Permeability (µi): 80
- Core Factor (ΣI/A) mm-1: 0.5
- Effective Length (le) mm: 31.6
- Effective Area (Ae) mm²: 63
- Minimum Core Cross Section (Amin) mm²: -
- Effective Magnetic Volume (Ve) mm³: 1990
- Finish: Uncoated
- Height: 0.268" (6.80mm)
- Length: -
- Width: -
