B65671T0100A001
EPCOS - TDK Electronics
EPCOS - TDK Electronics

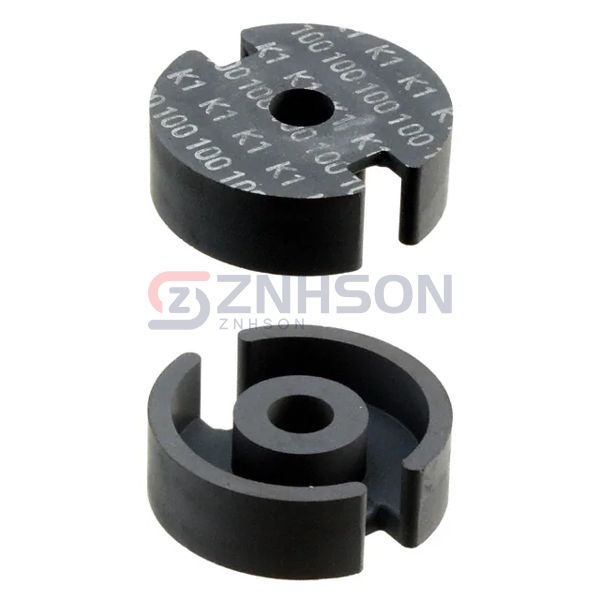

FERRITE CORE P 100NH K1 2PCS
$16.18
Available to order
Reference Price (USD)
1+
$14.62000
10+
$13.15400
25+
$9.93840
50+
$9.64620
100+
$8.47700
250+
$7.77544
500+
$7.42468
1,000+
$7.30775
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Streamline your power electronics with EPCOS - TDK Electronics B65671T0100A001 Ferrite Cores, engineered for maximum efficiency and reliability. These cores are crucial in applications like solar inverters, motor drives, and wireless charging systems. Their excellent magnetic characteristics ensure low loss and high performance. Suitable for both commercial and industrial uses, our Ferrite Cores are a smart investment. Get in touch today to discuss your requirements and place an order!
Specifications
- Product Status: Active
- Core Type: P (Pot Core)
- Supplier Device Package: P 26 x 16
- Material: K1
- Diameter: 1.024" (26.00mm)
- Inductance Factor (Al): 100 nH
- Tolerance: ±3%
- Gap: Gapped
- Effective Permeability (µe): 32
- Initial Permeability (µi): 80
- Core Factor (ΣI/A) mm-1: 0.4
- Effective Length (le) mm: 37.2
- Effective Area (Ae) mm²: 93
- Minimum Core Cross Section (Amin) mm²: 76.5
- Effective Magnetic Volume (Ve) mm³: 3460
- Finish: Uncoated
- Height: 0.321" (8.15mm)
- Length: -
- Width: -
Related Products
EPCOS - TDK Electronics
B65661D0000R001
Ferroxcube
TX13/7.1/4.8-3E27
Ferroxcube

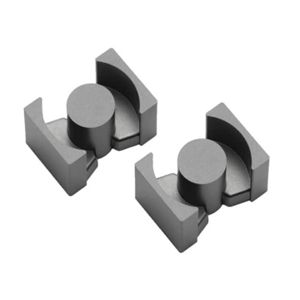

PQ20/20-3C97
EPCOS - TDK Electronics

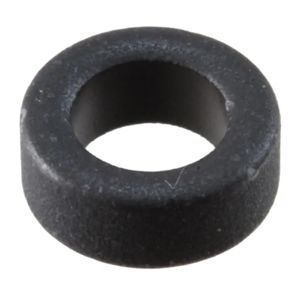

B64290P0751X065
Ferroxcube

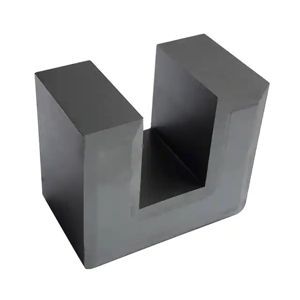

U93/76/16-3C94
EPCOS - TDK Electronics

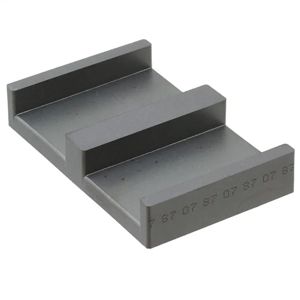

B66293G0000X187
EPCOS - TDK Electronics

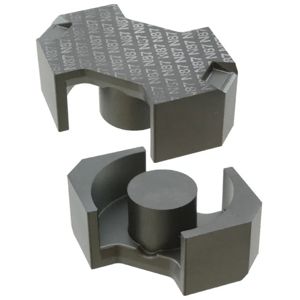

B65887E0000R087
EPCOS - TDK Electronics

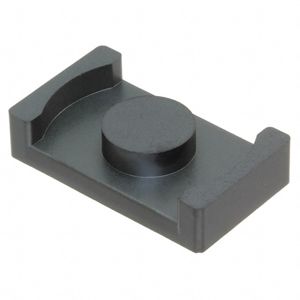

B66484G0000X192
Fair-Rite Products Corp.

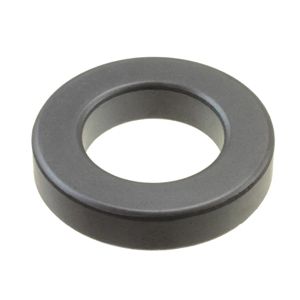

5975001401
