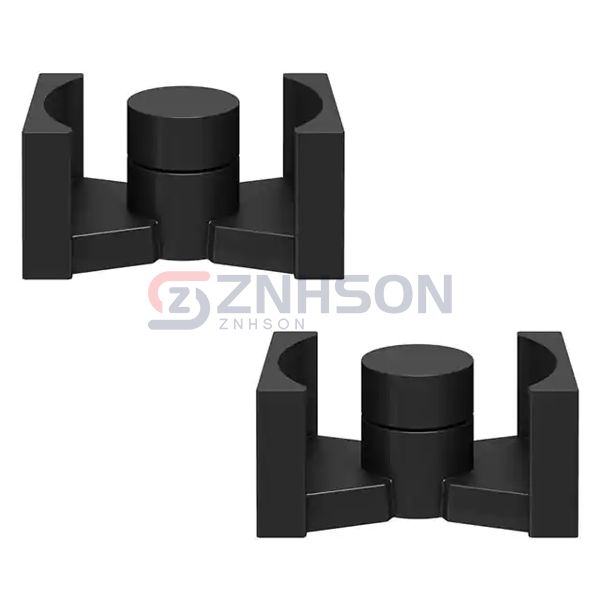

B65981Q0100K097
EPCOS - TDK Electronics
EPCOS - TDK Electronics
PQ50/50-N97-DG100
$22.10
Available to order
Reference Price (USD)
1+
$22.10000
500+
$21.879
1000+
$21.658
1500+
$21.437
2000+
$21.216
2500+
$20.995
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your electronic applications with EPCOS - TDK Electronics B65981Q0100K097 Ferrite Cores, designed for exceptional magnetic properties and longevity. These cores are widely utilized in DC-DC converters, inductors, and high-frequency transformers. Their superior impedance characteristics make them perfect for suppressing electromagnetic noise. Whether for medical devices or automotive systems, our Ferrite Cores provide reliable solutions. Submit your inquiry today and let us help you find the perfect fit!
Specifications
- Product Status: Active
- Core Type: PQ
- Supplier Device Package: PQ 50 x 50
- Material: N97
- Diameter: -
- Inductance Factor (Al): 100 nH
- Tolerance: ±10%
- Gap: Distributed Gapped
- Effective Permeability (µe): -
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 0.342
- Effective Length (le) mm: 113
- Effective Area (Ae) mm²: 332
- Minimum Core Cross Section (Amin) mm²: 314
- Effective Magnetic Volume (Ve) mm³: 37630
- Finish: Uncoated
- Height: 0.984" (25.00mm)
- Length: 1.969" (50.00mm)
- Width: 6.702" (190.0mm)
