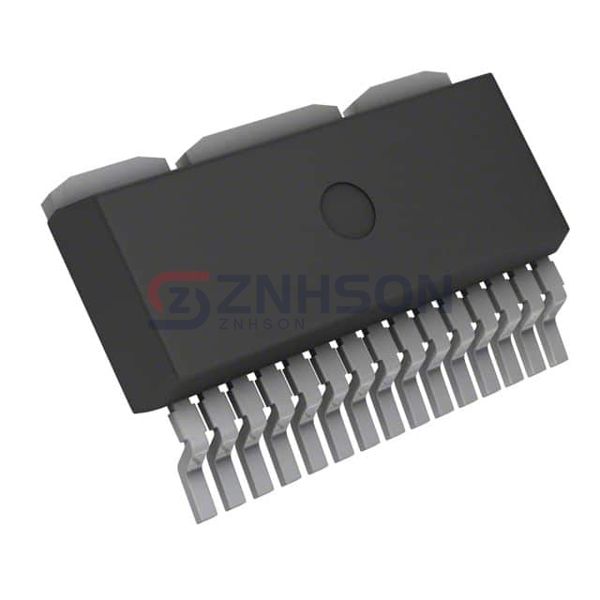

BTM7710GPAUMA1
Infineon Technologies
Infineon Technologies
IC BRIDGE DRIVER PAR TO263-15
$0.00
Available to order
Reference Price (USD)
500+
$5.75402
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Infineon Technologies BTM7710GPAUMA1 series offers versatile full/half-bridge driver solutions for modern power electronics. Featuring dual MOSFET gate drivers with independent inputs, these PMICs provide exceptional flexibility in motor control and switched-mode power supply designs. Advanced protection mechanisms include undervoltage lockout and thermal shutdown, while the high-current drive capability ensures efficient switching of power transistors. Suitable for industrial, automotive, and consumer applications. Request technical documentation or samples through our quick inquiry form.
Specifications
- Product Status: Obsolete
- Output Configuration: Half Bridge (2)
- Applications: DC Motors, General Purpose
- Interface: Logic
- Load Type: Inductive
- Technology: DMOS
- Rds On (Typ): 40mOhm LS, 70mOhm HS
- Current - Output / Channel: -
- Current - Peak Output: 15A
- Voltage - Supply: 1.8V ~ 42V
- Voltage - Load: 1.8V ~ 42V
- Operating Temperature: -40°C ~ 110°C (TJ)
- Features: Status Flag
- Fault Protection: Over Temperature, Short Circuit, UVLO
- Mounting Type: Surface Mount
- Package / Case: TO-263-18 (15 Leads + 3 Tabs)
- Supplier Device Package: PG-TO263-15-1
