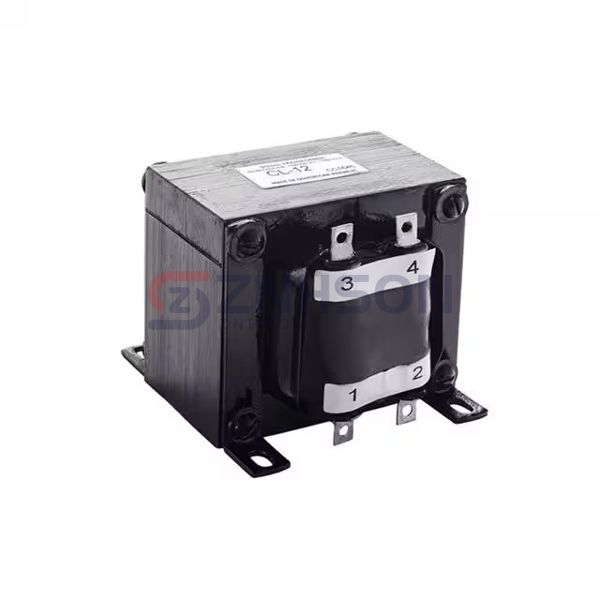

CL-50-100
Signal Transformer
Signal Transformer
INDUCT ARRAY 2COIL 120UH CHA MNT
$158.38
Available to order
Reference Price (USD)
1+
$158.38000
500+
$156.7962
1000+
$155.2124
1500+
$153.6286
2000+
$152.0448
2500+
$150.461
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic assemblies with CL-50-100 Signal Transformer Inductors, Coils, and Chokes, perfect for Arrays and Signal Transformers. These components provide excellent impedance matching and noise filtering, essential for high-speed digital and analog circuits. For tailored solutions and unbeatable service, contact us now and let s discuss your requirements!
Specifications
- Product Status: Active
- Number of Coils: 2
- Inductance - Connected In Parallel: 120 µH
- Inductance - Connected In Series: 500 µH
- Tolerance: -
- Current Rating - Parallel: 100 A
- Current Rating - Series: 50 A
- Current Saturation - Parallel: -
- Current Saturation - Series: -
- DC Resistance (DCR) - Parallel: 1.1mOhm
- DC Resistance (DCR) - Series: 4.3mOhm
- Shielding: Unshielded
- Ratings: -
- Operating Temperature: -
- Mounting Type: Chassis Mount
- Package / Case: Nonstandard
- Size / Dimension: 4.500" L x 3.752" W (114.30mm x 95.30mm)
- Height: 3.752" (95.30mm)
