CSD17301Q5A
Texas Instruments
Texas Instruments
MOSFET N-CH 30V 28A/100A 8VSON
$1.72
Available to order
Reference Price (USD)
2,500+
$0.73370
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with CSD17301Q5A by Texas Instruments, a top-tier choice in Discrete Semiconductor Products. Specifically crafted for Transistors - FETs, MOSFETs - Single applications, this product offers superior power handling and energy efficiency. Key features include high voltage tolerance, minimal power loss, and robust durability, making it perfect for switching and amplification tasks. Whether for industrial machinery, renewable energy systems, or portable devices, CSD17301Q5A ensures reliable operation. Ready to integrate this component into your project? Submit an inquiry now for pricing and availability!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 28A (Ta), 100A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 3V, 8V
- Rds On (Max) @ Id, Vgs: 2.6mOhm @ 25A, 8V
- Vgs(th) (Max) @ Id: 1.55V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 25 nC @ 4.5 V
- Vgs (Max): +10V, -8V
- Input Capacitance (Ciss) (Max) @ Vds: 3480 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 3.2W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-VSONP (5x6)
- Package / Case: 8-PowerTDFN
Related Products
Infineon Technologies
IAUT300N08S5N012ATMA2
Infineon Technologies
IPA95R1K2P7XKSA1
Toshiba Semiconductor and Storage
TK20A60W,S5VX
STMicroelectronics
STF10N65K3
Alpha & Omega Semiconductor Inc.
AOD4132
Diodes Incorporated
DMN2028USS-13
Infineon Technologies
IPD70R1K4CEAUMA1
Vishay Siliconix

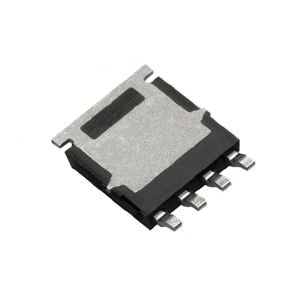

SQJA81EP-T1_GE3
