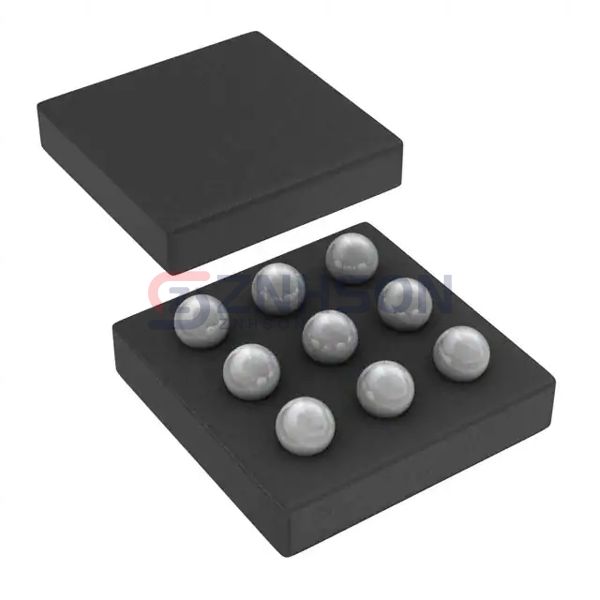

CSD22206W
Texas Instruments
Texas Instruments
MOSFET P-CH 8V 5A 9DSBGA
$0.81
Available to order
Reference Price (USD)
1+
$0.81000
500+
$0.8019
1000+
$0.7938
1500+
$0.7857
2000+
$0.7776
2500+
$0.7695
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover CSD22206W, a versatile Transistors - FETs, MOSFETs - Single solution from Texas Instruments, a trusted name in Discrete Semiconductor Products. This MOSFET combines high power density with low on-resistance, perfect for compact and energy-efficient designs. Applications include solar inverters, electric vehicles, and wearable technology. Interested in this innovative component? Send us your inquiry now for more information!
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 8 V
- Current - Continuous Drain (Id) @ 25°C: 5A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 5.7mOhm @ 2A, 4.5V
- Vgs(th) (Max) @ Id: 1.05V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 14.6 nC @ 4.5 V
- Vgs (Max): -6V
- Input Capacitance (Ciss) (Max) @ Vds: 2275 pF @ 4 V
- FET Feature: -
- Power Dissipation (Max): 1.7W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 9-DSBGA
- Package / Case: 9-UFBGA, DSBGA
Related Products
Toshiba Semiconductor and Storage
TK28A65W,S5X
Infineon Technologies
IRLR3915TRPBF
Toshiba Semiconductor and Storage
TPH4R50ANH1,LQ
Alpha & Omega Semiconductor Inc.
AO3407A
Diodes Incorporated
DMN2065UWQ-7
Infineon Technologies
BSC070N10NS3GATMA1
STMicroelectronics

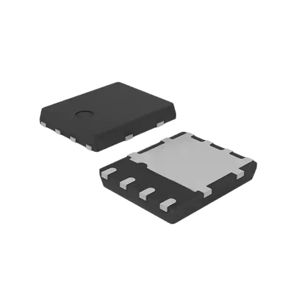

STL12N60M6
Vishay Siliconix

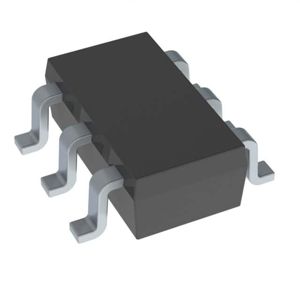

SI3410DV-T1-GE3
Vishay Siliconix

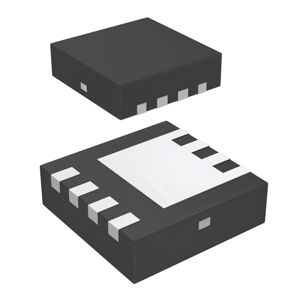

SISS02DN-T1-GE3
