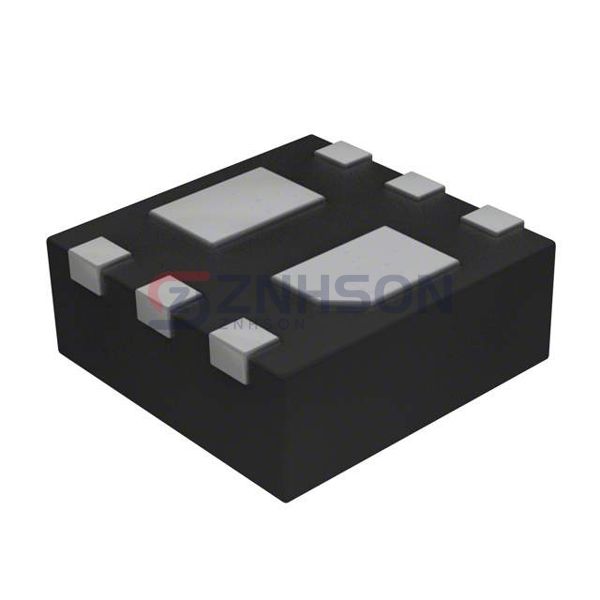

CSD85301Q2
Texas Instruments
Texas Instruments
MOSFET 2N-CH 20V 5A 6WSON
$0.70
Available to order
Reference Price (USD)
3,000+
$0.21545
6,000+
$0.20155
15,000+
$0.19460
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CSD85301Q2 from Texas Instruments is a premium option in the Discrete Semiconductor Products category, specializing in Transistors - FETs, MOSFETs - Arrays. With advanced features such as high-frequency operation, low leakage current, and excellent ESD protection, these components are perfect for demanding electronic applications. Whether you re working on telecommunications, computing, or medical devices, CSD85301Q2 offers the reliability you need. Contact us now to discuss how we can support your project requirements with Texas Instruments s cutting-edge solutions.
Specifications
- Product Status: Active
- FET Type: 2 N-Channel (Dual)
- FET Feature: Logic Level Gate, 5V Drive
- Drain to Source Voltage (Vdss): 20V
- Current - Continuous Drain (Id) @ 25°C: 5A
- Rds On (Max) @ Id, Vgs: 27mOhm @ 5A, 4.5V
- Vgs(th) (Max) @ Id: 1.2V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 5.4nC @ 4.5V
- Input Capacitance (Ciss) (Max) @ Vds: 469pF @ 10V
- Power - Max: 2.3W
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 6-WDFN Exposed Pad
- Supplier Device Package: 6-WSON (2x2)
