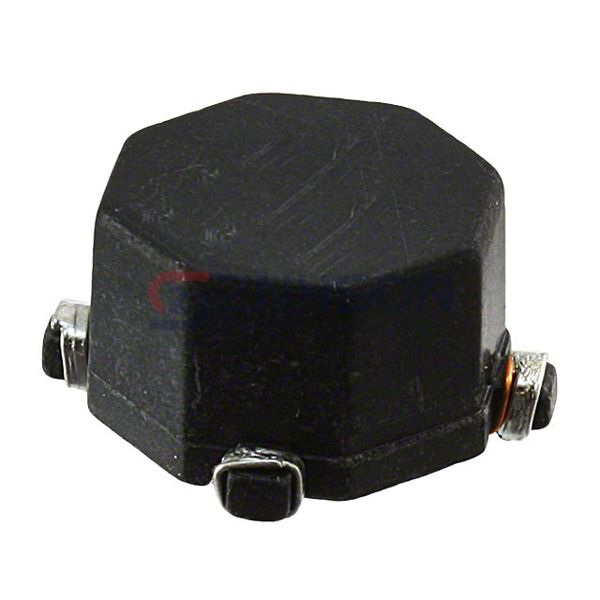

CTX0.33-2A-R
Eaton - Electronics Division
Eaton - Electronics Division
INDUCT ARRAY 2 COIL 284NH SMD
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic assemblies with CTX0.33-2A-R Eaton - Electronics Division Inductors, Coils, and Chokes, perfect for Arrays and Signal Transformers. These components provide excellent impedance matching and noise filtering, essential for high-speed digital and analog circuits. For tailored solutions and unbeatable service, contact us now and let s discuss your requirements!
Specifications
- Product Status: Obsolete
- Number of Coils: 2
- Inductance - Connected In Parallel: 284 nH
- Inductance - Connected In Series: 1.14 µH
- Tolerance: ±25%
- Current Rating - Parallel: 10.9 A
- Current Rating - Series: 5.47 A
- Current Saturation - Parallel: 18.8 A
- Current Saturation - Series: 9.38 A
- DC Resistance (DCR) - Parallel: 3.3mOhm Max
- DC Resistance (DCR) - Series: 13.2mOhm Max
- Shielding: Unshielded
- Ratings: -
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Size / Dimension: 0.450" L x 0.450" W (11.43mm x 11.43mm)
- Height: 0.235" (5.97mm)
Related Products
Signal Transformer
SCRHB125-5622
COILCRAFT
MSD1278H-103MED
Bourns Inc.
PM3604-8-B-RC
COILCRAFT
MSD1278H-823MED
Eaton - Electronics Division
DRQ127-2R2-G
Bourns Inc.
PM3602-200-B-RC
COILCRAFT
MSD1278H-684KED
Signal Transformer
SCX114-200
Pulse Electronics Power

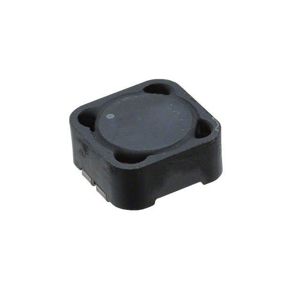

PF0552.332NLT
