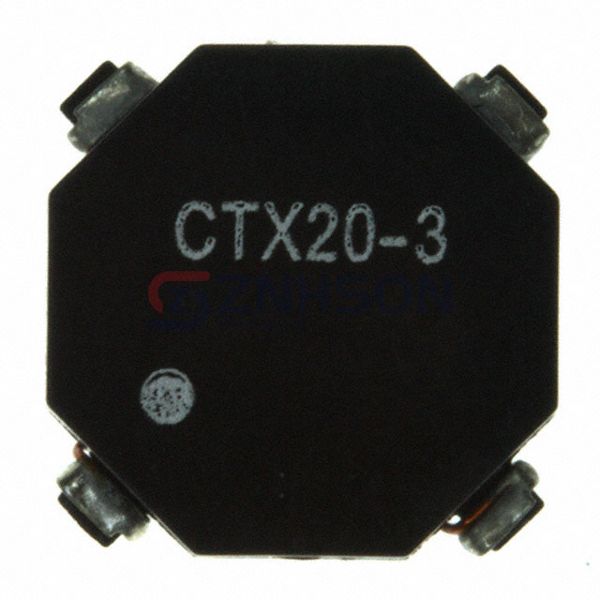

CTX20-3-R
Eaton - Electronics Division
Eaton - Electronics Division
INDUCT ARRAY 2 COIL 20.18UH SMD
$4.03
Available to order
Reference Price (USD)
1+
$4.02990
500+
$3.989601
1000+
$3.949302
1500+
$3.909003
2000+
$3.868704
2500+
$3.828405
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CTX20-3-R Eaton - Electronics Division Inductors, Coils, and Chokes are your go-to solution for high-performance Arrays and Signal Transformers. Featuring excellent EMI suppression and wide operating temperature ranges, they are perfect for IoT devices, automotive systems, and industrial automation. Let us help you find the perfect fit for your needs contact us today for expert advice and a detailed proposal!
Specifications
- Product Status: Active
- Number of Coils: 2
- Inductance - Connected In Parallel: 20.18 µH
- Inductance - Connected In Series: 80.74 µH
- Tolerance: ±20%
- Current Rating - Parallel: 1.5 A
- Current Rating - Series: 750 mA
- Current Saturation - Parallel: -
- Current Saturation - Series: -
- DC Resistance (DCR) - Parallel: 78mOhm Max
- DC Resistance (DCR) - Series: 312mOhm Max
- Shielding: Unshielded
- Ratings: -
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Size / Dimension: 0.550" L x 0.550" W (13.97mm x 13.97mm)
- Height: 0.190" (4.83mm)
