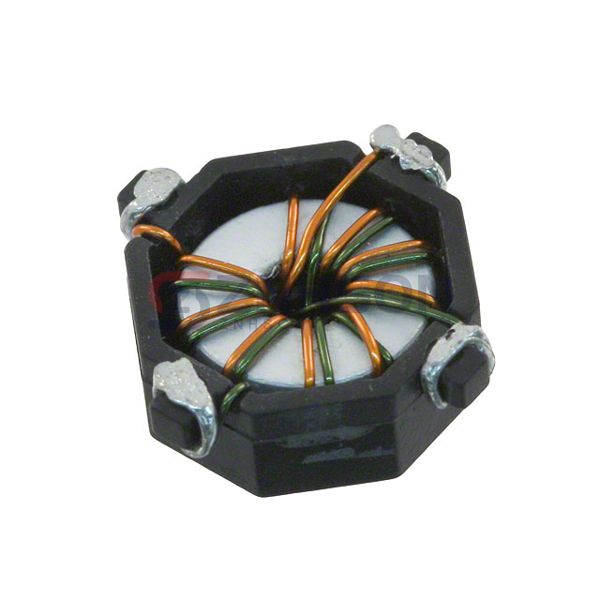

CTX5-1A-R
Eaton - Electronics Division
Eaton - Electronics Division
INDUCT ARRAY 2 COIL 4.7UH SMD
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic systems with the premium CTX5-1A-R Eaton - Electronics Division Inductors, Coils, and Chokes. Specifically crafted for Arrays and Signal Transformers, these components provide superior signal integrity and noise reduction. Perfect for use in power supplies, audio equipment, and RF applications, they deliver unmatched performance and longevity. Ready to enhance your project? Submit an inquiry now and let our experts assist you with the best solutions!
Specifications
- Product Status: Obsolete
- Number of Coils: 2
- Inductance - Connected In Parallel: 4.7 µH
- Inductance - Connected In Series: 18.8 µH
- Tolerance: ±25%
- Current Rating - Parallel: 4.27 A
- Current Rating - Series: 2.13 A
- Current Saturation - Parallel: 3.75 A
- Current Saturation - Series: 1.88 A
- DC Resistance (DCR) - Parallel: 20mOhm Max
- DC Resistance (DCR) - Series: 82mOhm Max
- Shielding: Unshielded
- Ratings: -
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Size / Dimension: 0.450" L x 0.450" W (11.43mm x 11.43mm)
- Height: 0.165" (4.19mm)
Related Products
Eaton - Electronics Division
DRQ74-470-TRW
Signal Transformer
SCRHB125B-8222
Signal Transformer
SCRHB125B-1016
Pulse Electronics Power
PF0553.104NLT
Pulse Electronics Power
PF0553.684NLT
Pulse Electronics Power

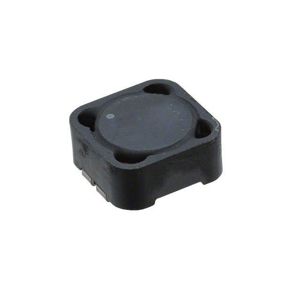

PF0552.102NLT
Bourns Inc.

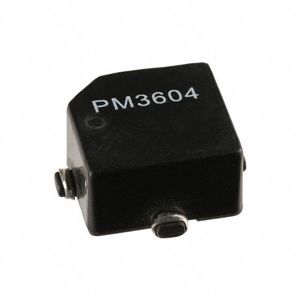

PM3604-50-B
Signal Transformer

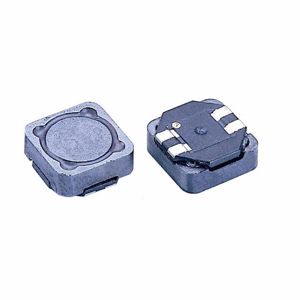

SCRHB124B-1024
Signal Transformer

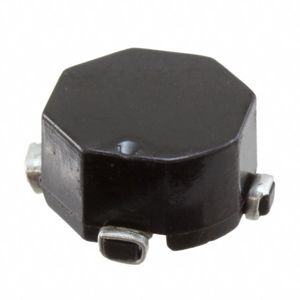

SCX147-200
