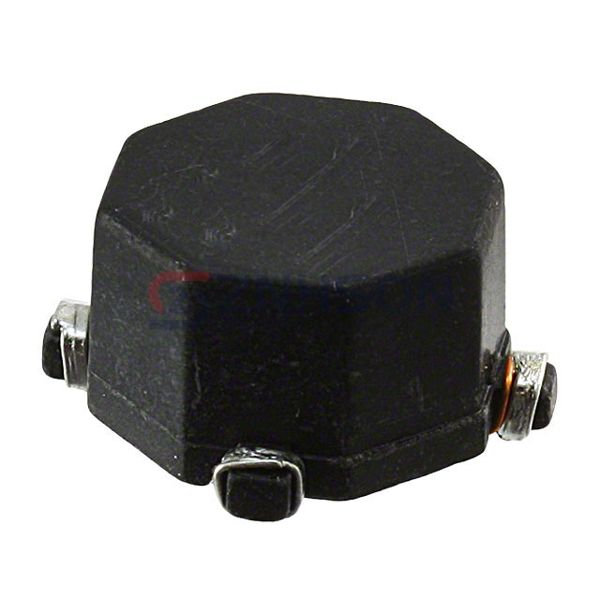

CTX5-2A-R
Eaton - Electronics Division
Eaton - Electronics Division
INDUCT ARRAY 2 COIL 5.06UH SMD
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CTX5-2A-R Eaton - Electronics Division Inductors, Coils, and Chokes are engineered to meet the highest industry standards. Our Arrays and Signal Transformers feature compact designs, high inductance values, and excellent thermal stability, suitable for consumer electronics and medical devices. Whether you need bulk orders or customized specifications, we ve got you covered. Don t hesitate request a quote today and experience top-tier quality!
Specifications
- Product Status: Obsolete
- Number of Coils: 2
- Inductance - Connected In Parallel: 5.06 µH
- Inductance - Connected In Series: 20.22 µH
- Tolerance: ±25%
- Current Rating - Parallel: 4.34 A
- Current Rating - Series: 2.17 A
- Current Saturation - Parallel: 4.69 A
- Current Saturation - Series: 2.34 A
- DC Resistance (DCR) - Parallel: 21mOhm Max
- DC Resistance (DCR) - Series: 84mOhm Max
- Shielding: Unshielded
- Ratings: -
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Size / Dimension: 0.450" L x 0.450" W (11.43mm x 11.43mm)
- Height: 0.235" (5.97mm)
