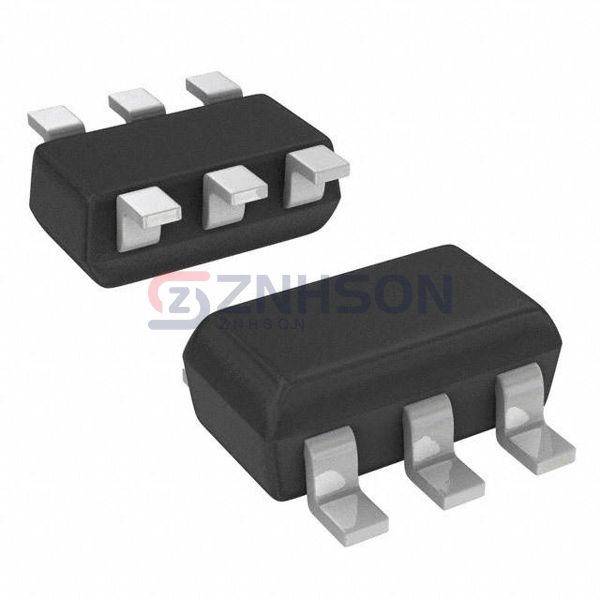

DCX124EK-7-F
Diodes Incorporated
Diodes Incorporated
TRANS NPN/PNP PREBIAS 0.3W SC74R
$0.43
Available to order
Reference Price (USD)
3,000+
$0.08280
6,000+
$0.07524
15,000+
$0.06768
30,000+
$0.06390
75,000+
$0.05760
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade to Diodes Incorporated's premium DCX124EK-7-F BJT Arrays for unmatched performance in discrete semiconductor applications. These pre-biased transistor pairs deliver consistent results in amplification and switching tasks, featuring optimized base-emitter resistors for immediate circuit integration. Perfect for use in voltage regulators, relay drivers, and signal conditioning circuits within consumer electronics and embedded systems. The product line boasts high power dissipation, wide operating temperature ranges, and moisture-resistant packaging. As an industry leader, Diodes Incorporated provides technical documentation and design support for all DCX124EK-7-F applications. Start your order process submit an inquiry to receive customized solutions!
Specifications
- Product Status: Active
- Transistor Type: 1 NPN, 1 PNP - Pre-Biased (Dual)
- Current - Collector (Ic) (Max): 100mA
- Voltage - Collector Emitter Breakdown (Max): 50V
- Resistor - Base (R1): 22kOhms
- Resistor - Emitter Base (R2): 22kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 80 @ 5mA, 5V
- Vce Saturation (Max) @ Ib, Ic: 300mV @ 500µA, 10mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: 250MHz
- Power - Max: 300mW
- Mounting Type: Surface Mount
- Package / Case: SC-74, SOT-457
- Supplier Device Package: SC-74R
