DMC561040R
Panasonic Electronic Components
Panasonic Electronic Components
TRANS 2NPN PREBIAS 0.15W SMINI5
$0.00
Available to order
Reference Price (USD)
3,000+
$0.13167
6,000+
$0.12369
15,000+
$0.11571
30,000+
$0.10640
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Introducing Panasonic Electronic Components's DMC561040R advanced Pre-Biased Transistor Arrays engineered for modern electronics. These BJT arrays provide ready-to-use solutions with internal resistor networks, significantly reducing design complexity and BOM costs. Application highlights include power supply circuits, display drivers, and microcontroller interfaces in automotive, aerospace, and industrial environments. Technical features comprise low VCE(sat), tight current gain matching, and RoHS compliance for environmental safety. Panasonic Electronic Components stands behind every DMC561040R unit with rigorous quality testing. Streamline your procurement process contact our sales team via the inquiry form for personalized assistance!
Specifications
- Product Status: Discontinued at Digi-Key
- Transistor Type: 2 NPN - Pre-Biased (Dual)
- Current - Collector (Ic) (Max): 100mA
- Voltage - Collector Emitter Breakdown (Max): 50V
- Resistor - Base (R1): 10kOhms
- Resistor - Emitter Base (R2): 47kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 80 @ 5mA, 10V
- Vce Saturation (Max) @ Ib, Ic: 250mV @ 500µA, 10mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: -
- Power - Max: 150mW
- Mounting Type: Surface Mount

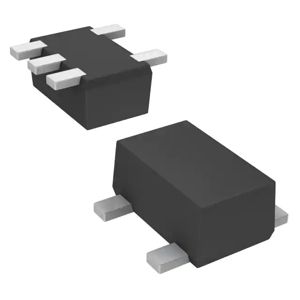

- Package / Case: 6-SMD (5 Leads), Flat Lead
- Supplier Device Package: SMini5-F3-B
