RN2966FE(TE85L,F)
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
TRANS 2PNP PREBIAS 0.1W ES6
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Toshiba Semiconductor and Storage's RN2966FE(TE85L,F) represents the next generation of Pre-Biased Bipolar Transistor Arrays, combining efficiency with compact design. These surface-mount compatible components feature integrated bias networks that reduce part count while improving system reliability. Ideal applications encompass power management, sensor interfaces, and digital circuit amplification in medical equipment, robotics, and smart home systems. Notable advantages include consistent hFE matching, reduced board space requirements, and simplified inventory management. As a leading supplier of discrete semiconductors, Toshiba Semiconductor and Storage guarantees quality and performance. Get competitive quotes and lead times inquire about RN2966FE(TE85L,F) now!
Specifications
- Product Status: Obsolete
- Transistor Type: 2 PNP - Pre-Biased (Dual)
- Current - Collector (Ic) (Max): 100mA
- Voltage - Collector Emitter Breakdown (Max): 50V
- Resistor - Base (R1): 4.7kOhms
- Resistor - Emitter Base (R2): 47kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 80 @ 10mA, 5V
- Vce Saturation (Max) @ Ib, Ic: 300mV @ 250µA, 5mA
- Current - Collector Cutoff (Max): 100nA (ICBO)
- Frequency - Transition: 200MHz
- Power - Max: 100mW
- Mounting Type: Surface Mount
- Package / Case: SOT-563, SOT-666
- Supplier Device Package: ES6
Related Products
Infineon Technologies
BCR108SE6327BTSA1
Panasonic Electronic Components
DMC562050R
Panasonic Electronic Components
UP0331200L
Nexperia USA Inc.
PEMH30,115
Panasonic Electronic Components
DMA564040R
Panasonic Electronic Components

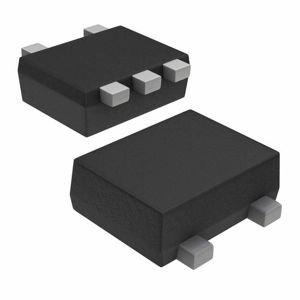

DMG963HE0R
