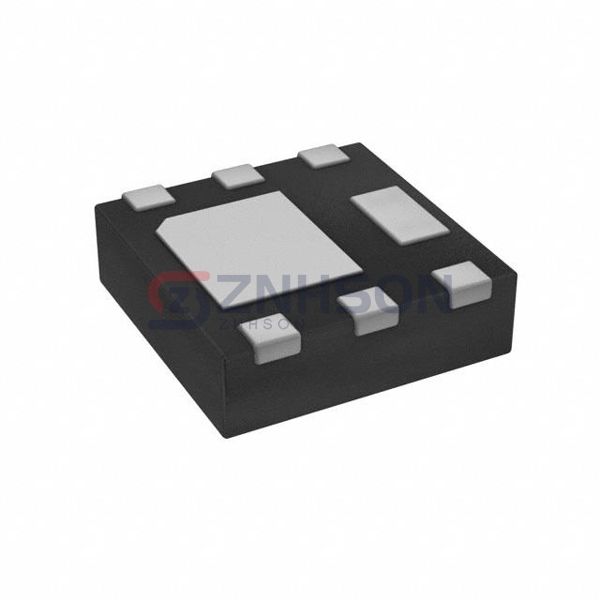

DMN3020UFDF-7
Diodes Incorporated
Diodes Incorporated
MOSFET N-CH 30V 15A 6UDFN
$0.16
Available to order
Reference Price (USD)
3,000+
$0.17893
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
DMN3020UFDF-7 by Diodes Incorporated is a standout in the Discrete Semiconductor Products market, specifically for Transistors - FETs, MOSFETs - Single applications. Engineered for precision, this MOSFET offers exceptional gate control, low leakage current, and high power density. Ideal for use in audio amplifiers, DC-DC converters, and battery management systems, DMN3020UFDF-7 ensures top-tier performance. Don t miss out on this versatile component request a sample or quote now!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 15A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 1.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 19mOhm @ 4.5A, 4.5V
- Vgs(th) (Max) @ Id: 1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 27 nC @ 8 V
- Vgs (Max): ±12V
- Input Capacitance (Ciss) (Max) @ Vds: 1304 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 2.03W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: U-DFN2020-6 (Type F)
- Package / Case: 6-UDFN Exposed Pad
